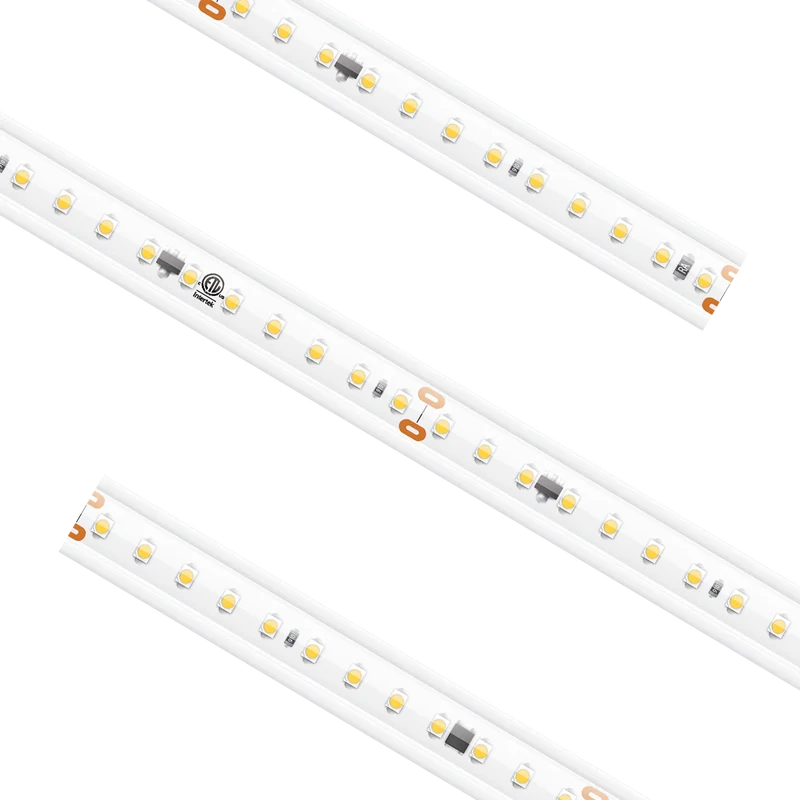

Hybrid 3 High Output 3000K Custom Cut
SKU
120-H3-30-CC-2835-112H
HYBRID 3 - Custom Cut - 2835 LED 112/M,120VAC,3000K,6W/FT,3"CUT,cETLus
Performance
Input Voltage
120V AC
UV Inhibitor
N
Wattage
6 W/ft
CCT
3000K
CRI
90+
Lumens
500
Cut Increment
3 in
Max Run
66 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
30,000 Hours
Temperature Range
-30C (-22F) to
45C (113F) degrees
Dimming
ELV / CL 10 - 100%
Finish
White
Quantity
112
Spacing
0.35 Inch
Physical
Weight
0.09 lbs
Length
Custom Cut
Certification
Safety Rating
ETL Listed
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| 120-H3-30-CC-2835-112H | Custom Cut | 120V AC | 3000K | 90+ | 6 W/ft | 500 | 66 ft | IP65 | Foot |
