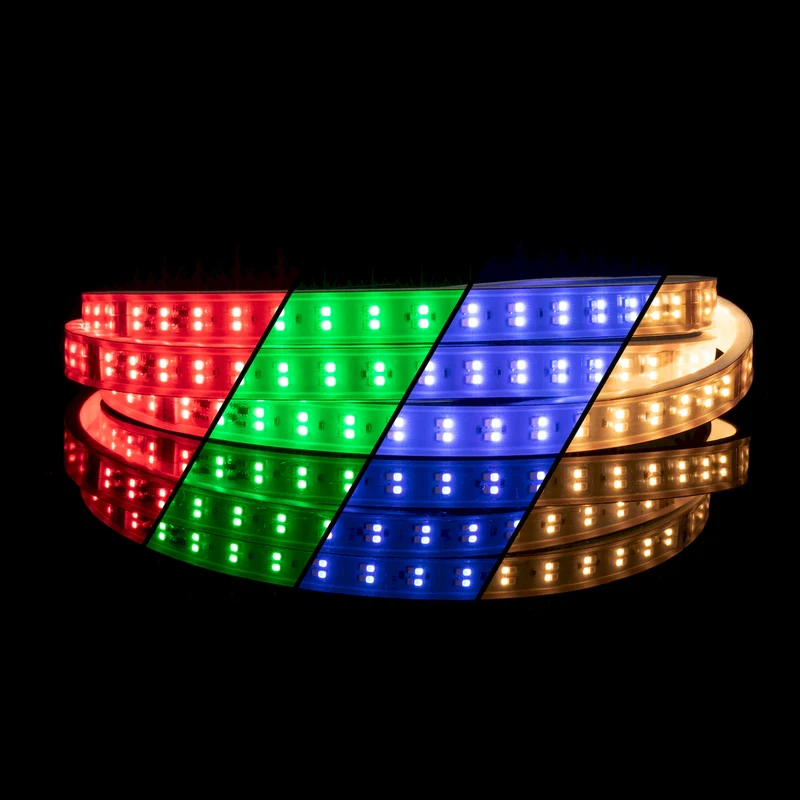

Hybrid 3 RGBW 150ft Reel
SKU
120-H3-RGBW
Superb light output for indoor and outdoor use. Parallel wiring in 12” cutting increments ensures that if one LED goes out, the rest of the LEDs continue to operate. Now available in RGBW, Hybrid 3 RGBW adds another element to your hospitality, home theater, and other various entertainment applications.
- 120V DC reels consume only 3 watts per foot
- Requires RGBW control (120-CTRL-4CH DMX Decoder recommended + DMX controller sold separately)
- Cuttable every 12" (ETL Listing void if cut)
- Economical for larger installations (164ft max run)
- ETL Listed for wet locations
- Suitable for indoor and outdoor use
- 30,000 hours rated life
Performance
Input Voltage
120V DC
Input Frequency
60Hz
UV Inhibitor
N
Wattage
3 W/ft
CCT
3000K
CRI
90+
Lumens
130
Cut Increment
12 in
Max Run
164 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-30C (-22F) to
45C (113F) degrees
Dimming
DMX 0 - 100%
Finish
White
Spacing
0.28 Inch
Physical
Weight
25.95 lbs
Width
0.07 Foot
Length
150 Foot
Height
0.02 Foot
Certification
Safety Rating
ETL Listed
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| 120-H3-RGBW | 150 Foot | 120V DC | 3000K | 90+ | 3 W/ft | 130 | 164 ft | IP65 | Each |
