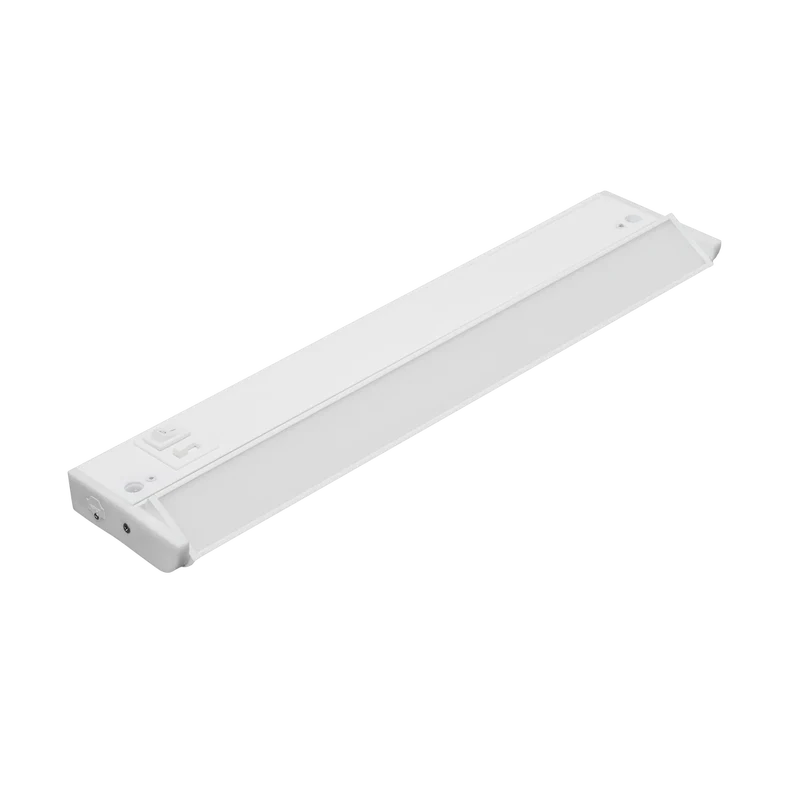

LED 5 Complete

SERIES
C-AML-5LCS

This adaptable, adjustable fixture allows for a wide range of illuminated area regardless of installation location. The fixture produces up to 1050 lumens and is field-switchable to five different color temperatures. With a pivot angle of ±32°, the LED 5-Complete promises ultimate flexibility without compromising performance.

  • Field-switchable 5CCT (2700K | 3000K | 3500K | 4000K | 5000K)
  • High color rendering index of 90+ CRI
  • 120V AC input
  • Low power consumption not exceeding 16.5W
  • Linkable up to 150W via jumpers or end-to-end connectors
  • Surface mount ultra-low profile
  • 35,000 hour rated life
  • cETLus listed for dry locations
LED 5 Complete
LED 5 Complete LED 5 Complete

Performance

Input Voltage
120V AC
CCT
5CCT (2700K/3000K/3500K/4000K/5000K)
Finish
White / Dark Bronze
Wattage
Up to 16.5W
Optics (Degree)
120 Degrees
CRI
90+
Max Run
150W
Rated Life (Hr)
35,000 Hours
Dimming
Dimmable (10-100%) with most ELV, TRIAC dimmers
Lumens
Up to 1050Lm

Certification

Safety Rating
cETLus Listed
Location Rating
Dry
Energy Star
Y
Title 24
Y
Indoor
Y
Item Number Length Input Voltage CCT CRI Wattage Max Run UOM
5LCS-10-5CCT-WH 10 Inch 120V AC 5CCT 90+ 7 W 150 W Each
5LCS-10-5CCT-DB 10 Inch 120V AC 5CCT 90+ 7 W 150 W Each
5LCS-16-5CCT-WH 16 Inch 120V AC 5CCT 90+ 11 W 150 W Each
5LCS-16-5CCT-DB 16 Inch 120V AC 5CCT 90+ 11 W 150 W Each
5LCS-24-5CCT-WH 24 Inch 120V AC 5CCT 90+ 15 W 150 W Each
5LCS-24-5CCT-DB 24 Inch 120V AC 5CCT 90+ 15 W 150 W Each
5LCS-32-5CCT-WH 32 Inch 120V AC 5CCT 90+ 16.5 W 150 W Each
5LCS-32-5CCT-DB 32 Inch 120V AC 5CCT 90+ 16.5 W 150 W Each
