MICROLUX

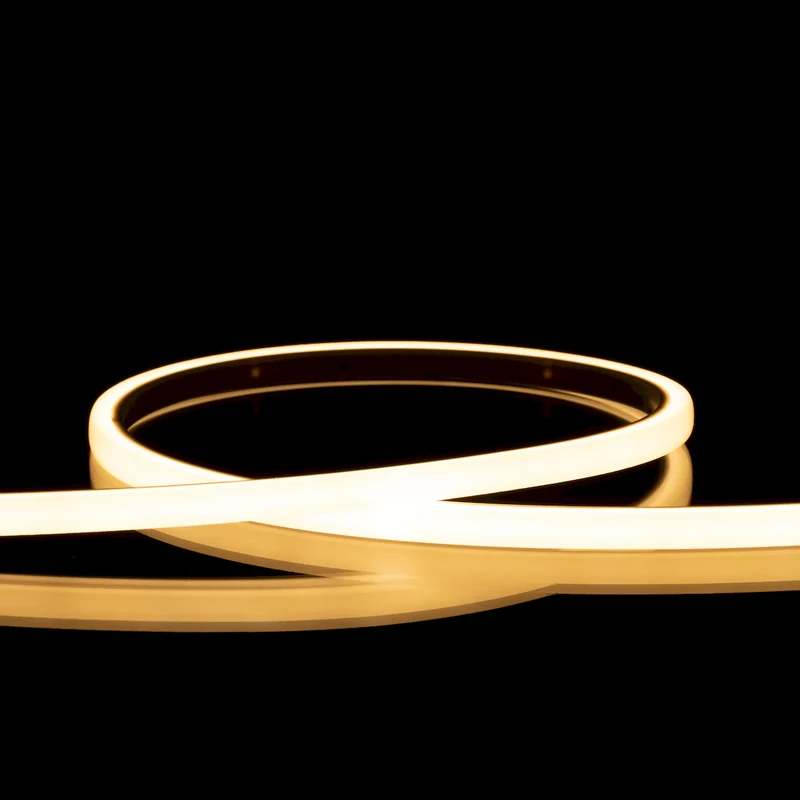

Featuring fully encased tape light, MicroLux provides smooth evenly diffused light that eliminates the needs for additional extrusion housings and lenses. With light emitting from three sides, MicroLux is a unique product that can be used in small spaces, or be placed on in direct view to meet the needs of dynamic lighting installations.

  • 24V DC Low voltage operation
  • Fully encased design eliminates dotting and provides diffused lighting
  • Eliminates the need for additional extrusion housings and lenses
  • Available in 3000K and 4000K color temperatures with 90+ CRI
  • Maximum runs up to 16.4 feet - Cuttable every 3.94"
  • Features top-bend flexibility
  • Dimmable with most TRIAC/ELV/CL dimmers
  • IP65 rating (encased) for indoor & outdoor use
  • cULus Listed - 50,000 hours rated life
Series
MLUX
Input Voltage
24V DC
CCT
3000K / 4000K
CRI
90+
Lumens
Up to 375Lm per ft
Wattage
4.4W per ft
Cut Increments
Every 3.94"
Max Run
16.4ft
IP Rating
IP65 - Wet Location
Dimmable
ELV (10-100%)
Rating
cULus Listed
Rated Life
50,000 Hours
MLUX-30

3000K / 24V DC / 4.4W ft / 370Lm ft / 16.4 ft Reel

MLUX-40

4000K / 24V DC / 4.4W ft / 375Lm ft / 16.4 ft Reel

MLUX-CONKIT2
6" Power Feed (3000K or 4000K)
MLUX-JUMP2-.5
6" Linking Cable (3000K or 4000K)
MLUX-JUMP2-2
24" Linking Cable (3000K or 4000K)
MLUX-SPL2
In-Line Splice (3000K or 4000K)
MLUX-END
End Caps (qty 10)
MLUX-CLIPS
Mounting clips (qty 10)
MLUX-CHAN-3A
1m Aluminum Mounting Channel (Deep)
MLUX-CHAN-3B
1M Aluminum Mounting Channel (Shallow)
