OMNI SLIM

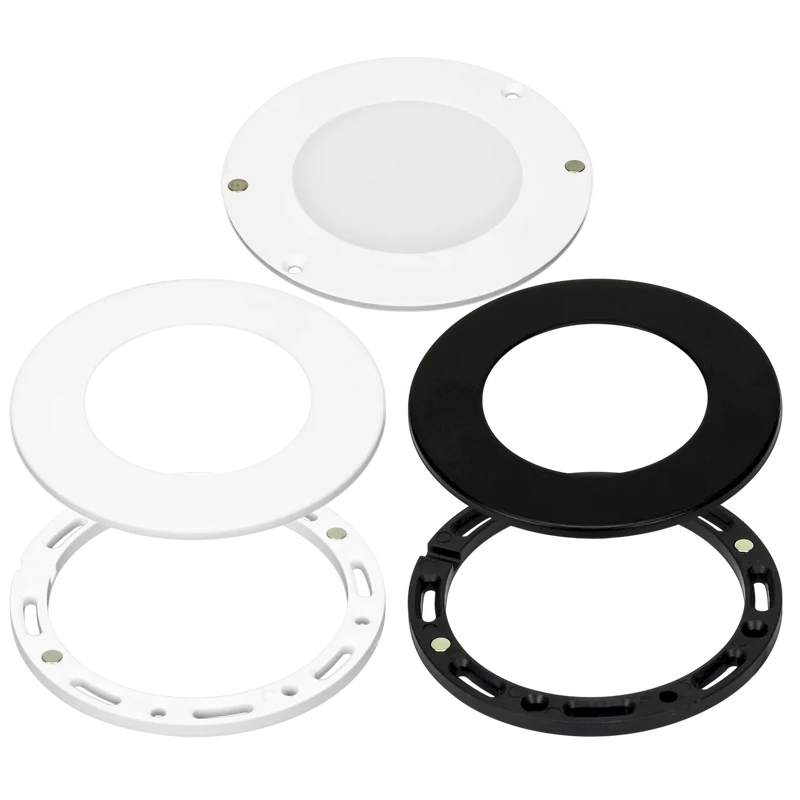

The ultra low profile Omni Slim puck light is only 1/16” tall (1/4” with trim) but produces up to 170 lumens. Available in 3000K or 4000K with a black or white finish the Omni Slim is the task light that is perfect for any accent, under-cabinet, in-cabinet, and other small niche area lighting application.
- Available in 3000K or 4000K
- High color rendering index (90+ CRI)
- 24V DC operation
- Low power consumption of 2.5W
- Surface mount ultra low profile
- cETLus listed for dry locations
- 35,000 hour rated life
SERIES
OMNI SLIM
INPUT VOLTAGE
24V DC
CCT
3000K / 4000K
CRI
90+
LUMENS
Up to 170Lm
WATTAGE
2.5W per Puck
MAX RUN
Dependent on Power Supply
BEAM ANGLE
148°
DIMMABLE
TRIAC / CL / ELV (5-100%)
RATING
IP20 - Dry Location
RATED LIFE
35,000 Hours
OMNISL-30
3000K / 24V / 2.5W / 160Lm / White or Black
OMNISL-40
4000K / 24V / 2.5W / 170Lm / White or Black
