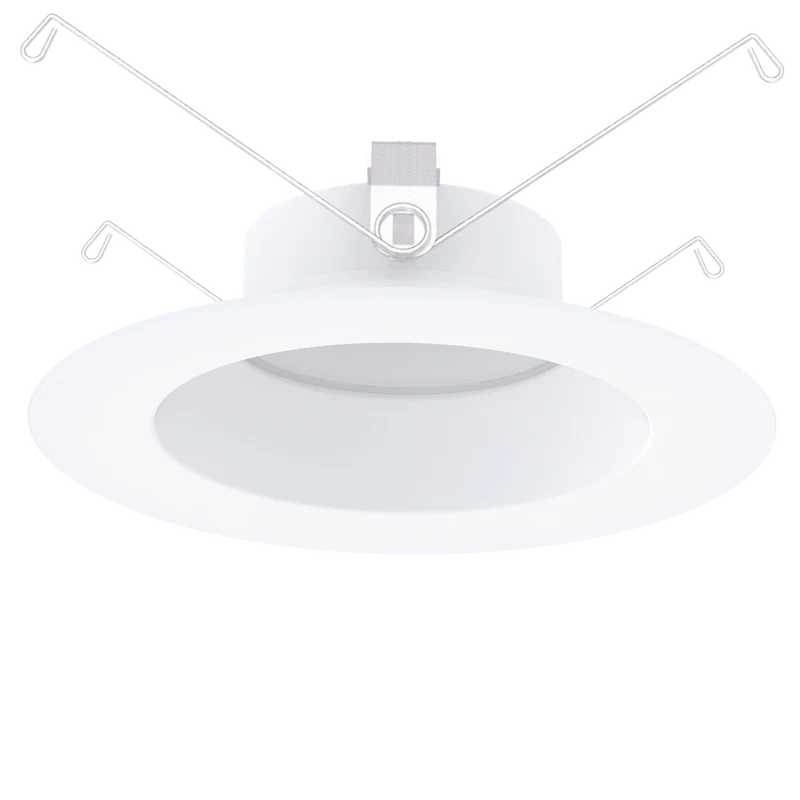

Advantage Select 5CCT 5/6in Retrofit Downlights
SERIES
C-AML-AD56-5CCT
The Advantage Select series recessed downlights make it simple and affordable to upgrade existing recessed housings to LED. Another added benefit to the Advantage Select series is the 5-in-1 selectable color temperature settings ranging from a warm white 2700K up to 5000K daylight. Simply set to you desired color temp with ease and change with future updates for years to come.
Performance
Input Voltage
120V AC
CCT
5CCT (2700K/3000K/3500K/4000K/5000K)
Finish
White / Dark Bronze / Black
Wattage
15W
Optics (Degree)
95 degrees
Style
Smooth / Baffle
CRI
90+
Rated Life (Hr)
50,000 Hours
Temperature Range
-20°C (-4°F) to 40°C (104°F)
Dimming
Dimmable (10-100%) with most CL, ELV, TRIAC dimmers
Lumens
1200Lm
Certification
Safety Rating
cETLus Listed
Location Rating
Wet
Energy Star
Y
Title 24
Y
Indoor
Y
FCC
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | UOM |
|---|---|---|---|---|---|---|---|
| AD56-5CCT-WH | 0.83 Inch | 120V AC | 5CCT | 90+ | 15 W | 1050 | CS12 |
| AD56-5CCT-DB | 0.83 Inch | 120V AC | 5CCT | 90+ | 15 W | 800 | CS12 |
| AD56-5CCT-BK | 0.83 Inch | 120V AC | 5CCT | 90+ | 15 W | 665 | CS12 |
