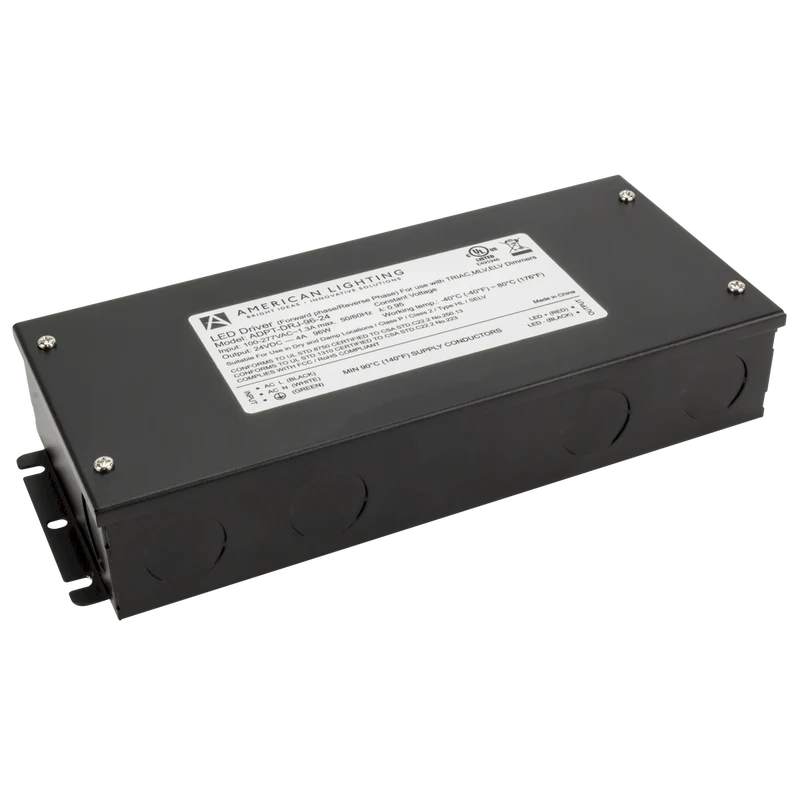

Adaptive Driver with Enclosed Leads and Knockouts 96 Watts 24V DC
SKU
ADPT-DRJ-96-24
The Adaptive LED Driver series are class 2 rated and designed to operate with any standard ELV, MLV, & Incandescent TRIAC (Leading edge) dimmer switch and is forward phase and reverse phase compatible. Encased in a low profile aluminum enclosure that includes knock-outs for easy and quick installation makes it the perfect choice for under cabinet lights, tape light and various LED fixture installations.
- 24V DC Constant voltage 96W hardwire LED driver
- Dimmable with ELV, MLV, & Incandescent TRIAC dimmers
- Features integrated wiring compartments for line and low voltage
- Forward phase & reverse phase compatible
- Short circuit, over-load, and over temperature protections
- Slim compact housing design - Less than 1-5/8" in height
- Class II / cULus Listed - Wet location rated
Performance
Input Voltage
100-277V AC
Output Voltage
24V DC
Output Frequency
4A
Wattage
96 W
Power Factor
0.98@120V 0.96@277V
Minimum Load
9.6 W
Temperature Range
-40C (-40F) to 60C (140F) degrees
Dimming
Phase Dimming / MLV / ELV / TRIAC 0-10V
Finish
Black
Physical
Weight
3.00 lbs
Width
3.54 Inch
Length
8.66 Inch
Height
1.61 Inch
Certification
Safety Rating
cULus Listed
Type IC
Y
Location Rating
Wet
Indoor
Y
ROHS
Y
FCC
Y
Class 2
Y
| Item Number | Length | Input Voltage | Wattage | UOM |
|---|---|---|---|---|
| ADPT-DRJ-96-24 | 8.66 Inch | 100-277V AC | 96 W | Each |
Specification Sheets
