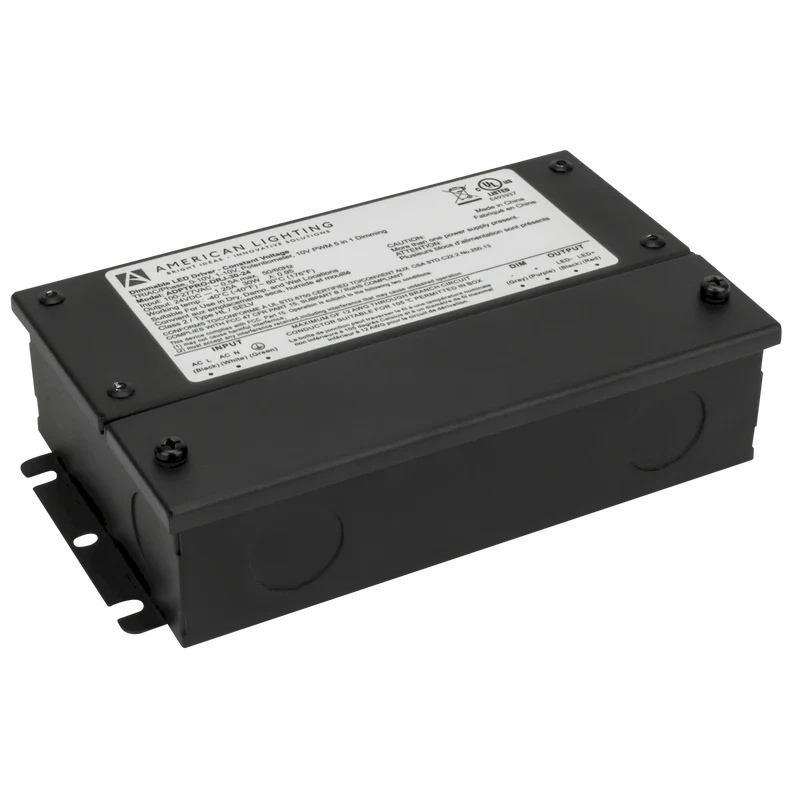

Adaptive PRO Driver with Enclosed Leads and Knockouts 30 Watts 24V DC
SKU
ADPTPRO-DRJ-30-24
The Adaptive Pro 5-in-1 dimmable Class 2 drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a low profile aluminum enclosure that includes knock-outs for easy installation in any low voltage application.
- 24V DC Constant voltage 30W hardwire LED drivers
- 5-in-1 Forward and Reverse Phase Dimming:
ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / Potentiometer - Dedicated line voltage and low voltage wiring compartments
- Short circuit, over-load, and over temperature protections
- Class 2 / Type HL / FCC Compliant
- cULus Listed - Wet location rated
Performance
Input Voltage
100-277V AC
Output Voltage
24V DC
Input Frequency
47-63 Hz
Output Frequency
1.25A
Wattage
30 W
Power Factor
0.99@120VAC 0.95@277VAC
Minimum Load
3 W
Temperature Range
-40C (-40F) to 60C (140F) degrees
Dimming
Phase Dimming / MLV / ELV / TRIAC 0-10V
Finish
Black
Physical
Weight
2.10 lbs
Width
2.79 Inch
Length
5.98 Inch
Height
1.73 Inch
Certification
Safety Rating
cULus Listed
Type IC
Y
Location Rating
Wet
Indoor
Y
ROHS
Y
FCC
Y
Class 2
Y
| Item Number | Length | Input Voltage | Wattage | UOM |
|---|---|---|---|---|
| ADPTPRO-DRJ-30-24 | 5.98 Inch | 100-277V AC | 30 W | Each |
