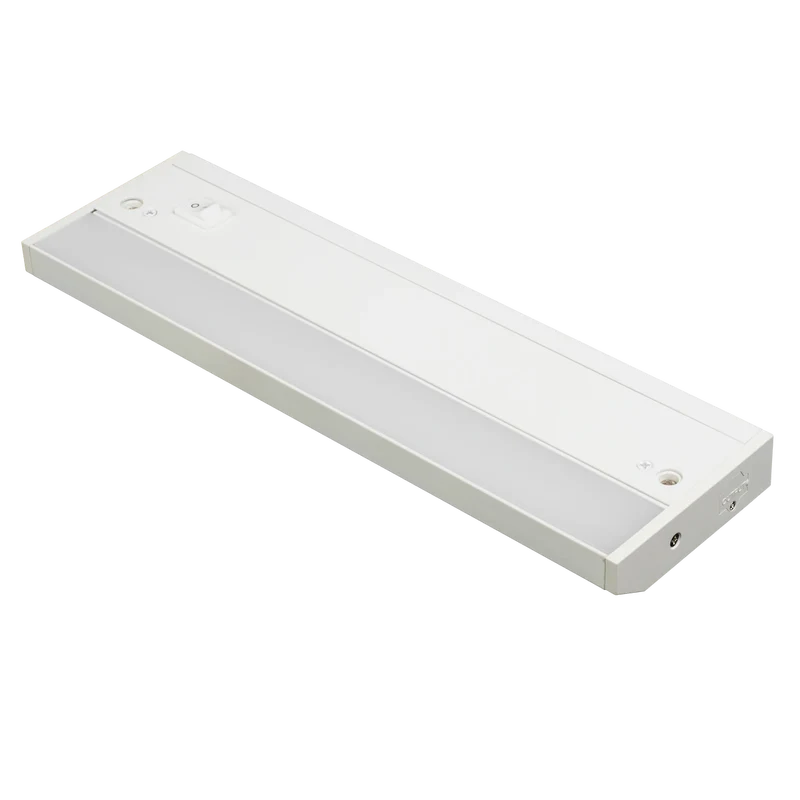

LED Complete 2 Undercabinet Light

SERIES
C-AML-ALC2

Choose from six energy efficient fixture lengths in two finishes. Easy installation with captive mounting screws, quick access door to wiring compartment, and handy accessories such as hardwire box and linking cables. Multiple fixtures can also be linked directly with an inline connector (included). Long life, high CRI and convenient dimming are additional benefits.

  • 3000K color temperature and 93+ CRI
  • Diffused lens eliminates dotting
  • Efficacies up to 70 lumens per watt
  • Linkable up to 400W
  • Low profile design - less than 1" high
  • Plug-in or direct wire capable
  • Dimmable with most CL and ELV dimmers
  • cETLus Listed for indoor dry locations
  • 35,000 hours rated life
  • ENERGY STAR certified
LED Complete 2 Undercabinet Light
LED Complete 2 Undercabinet Light

Performance

Input Voltage
120V AC
CCT
3000K
Finish
White / Dark Bronze
Wattage
Up to 14W
Optics (Degree)
120 Degrees
CRI
93+
Max Run
400W
Rated Life (Hr)
35,000 Hours
Dimming
Dimmable (5-100%) with most CL, ELV dimmers
Lumens
Up to 955Lm

Certification

Safety Rating
cETLus Listed
Location Rating
Dry
Energy Star
Y
Title 24
Y
Indoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run UOM
ALC2-8-DB 8 Inch 120V AC 3000K 93+ 3 W 175 400 W Each
ALC2-8-WH 8 Inch 120V AC 3000K 93+ 3 W 180 400 W Each
ALC2-12-DB 12 Inch 120V AC 3000K 93+ 4 W 250 400 W Each
ALC2-12-WH 12 Inch 120V AC 3000K 93+ 4 W 270 400 W Each
ALC2-18-DB 18 Inch 120V AC 3000K 93+ 6 W 375 400 W Each
ALC2-18-WH 18 Inch 120V AC 3000K 93+ 6 W 415 400 W Each
ALC2-24-DB 24 Inch 120V AC 3000K 93+ 8 W 475 400 W Each
ALC2-24-WH 24 Inch 120V AC 3000K 93+ 8 W 515 400 W Each
ALC2-32-DB 32 Inch 120V AC 3000K 93+ 11 W 650 400 W Each
ALC2-32-WH 32 Inch 120V AC 3000K 93+ 11 W 770 400 W Each
ALC2-40-DB 40 Inch 120V AC 3000K 93+ 14 W 800 400 W Each
ALC2-40-WH 40 Inch 120V AC 3000K 93+ 14 W 955 400 W Each
