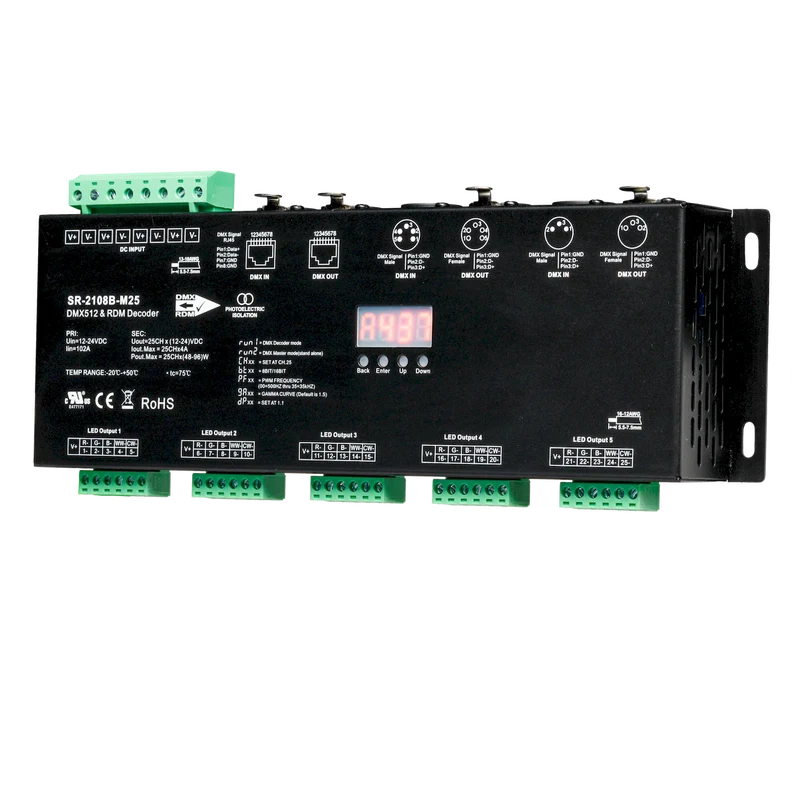

DMX+RDM Decoder: 25CH (5x5CH) with XLR3, XLR5 and RJ45 connections

SERIES
AML-DEC-DMX-RJ45-5X5CH

5X5 Channel DMX signal receiver/decoder for use with DMX controllers and low-voltage lighting.

  • RJ45, XLR3, or XLR5
  • 8 Bit or 16 bit PWM output resolution ratio
  • 25 total PWM output channels (5 ports x 5 channels)
  • Multi-Group DMX RGBW channel control
  • Up to 25 channel max *See drawings on next page*
  • 0.1 - 9.9 Gamma value output dimming curve range
  • Metal housing with digital display
  • Requires master DMX controller and 12-24V DC input for operation (Sold separately)
    DMX+RDM Decoder: 25CH (5x5CH) with XLR3, XLR5 and RJ45 connections
    DMX+RDM Decoder: 25CH (5x5CH) with XLR3, XLR5 and RJ45 connections DMX+RDM Decoder: 25CH (5x5CH) with XLR3, XLR5 and RJ45 connections DMX+RDM Decoder: 25CH (5x5CH) with XLR3, XLR5 and RJ45 connections

    Performance

    Input Voltage
    12-24V DC
    Output Voltage
    12-24V DC
    Temperature Range
    -20C (-4F) to 50C (122F) degrees
    Dimming
    DALI
    Control
    DMX

    Physical

    Weight
    2.5284 lbs

    Certification

    Safety Rating
    cURus Recognized
    ROHS
    Y
    Item Number Input Voltage UOM
    AML-DEC-DMX-RJ45-5X5CH 12-24V DC Each
