Axis 1in Downlight

SERIES
C-AML-A1

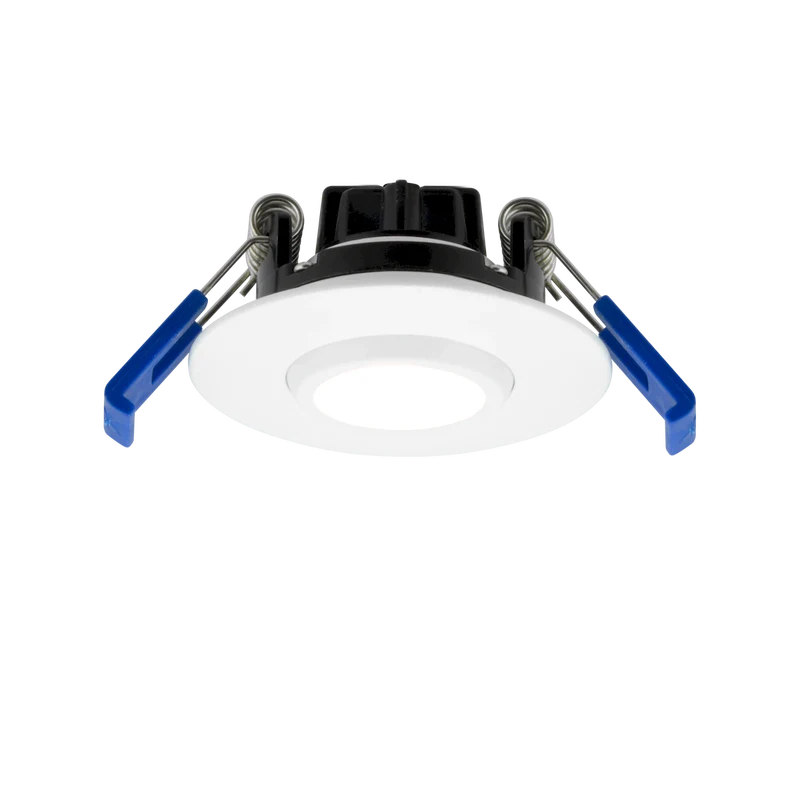

These IC rated recessed gimbal downlights are great for sloped ceilings and other applications where one may want to direct light. Available in two color temperature options and white finish, the Axis 1 mini downlight produces up to 350 lumen output performance.

  • Excellent color rendering (90+ CRI)
  • Available in 2700K or 3000K warm white
  • Lumen output up to 350 Lumens
  • Dimmable with most TRIAC or ELV dimmers
  • Remote driver with hardware junction box
  • Type IC and cETLus Listed for wet locations
  • 50,000 hours rated life
  • ENERGY STAR Certified, JA8 Compliant
Axis 1in Downlight
Axis 1in Downlight

Performance

Input Voltage
120V AC
CCT
2700K / 3000K
Finish
White
Wattage
5W
Optics (Degree)
38° (30° Tilt)
CRI
90+
Rated Life (Hr)
50,000 Hours
Temperature Range
-25°C (-13°F) to 40°C (104°F)
Dimming
Dimmable (10-100%) with most ELV, TRIAC dimmers
Lumens
350Lm/ft

Certification

Safety Rating
cETLus Listed
Location Rating
Wet
Energy Star
Y
Title 24
Y
Type IC
Y
Indoor
Y
FCC
Y
Item Number Input Voltage CCT CRI Wattage Lumens UOM
A1-27-WH 120V AC 2700K 90+ 5 W 320 Each
A1-30-WH 120V AC 3000K 90+ 5 W 350 Each
