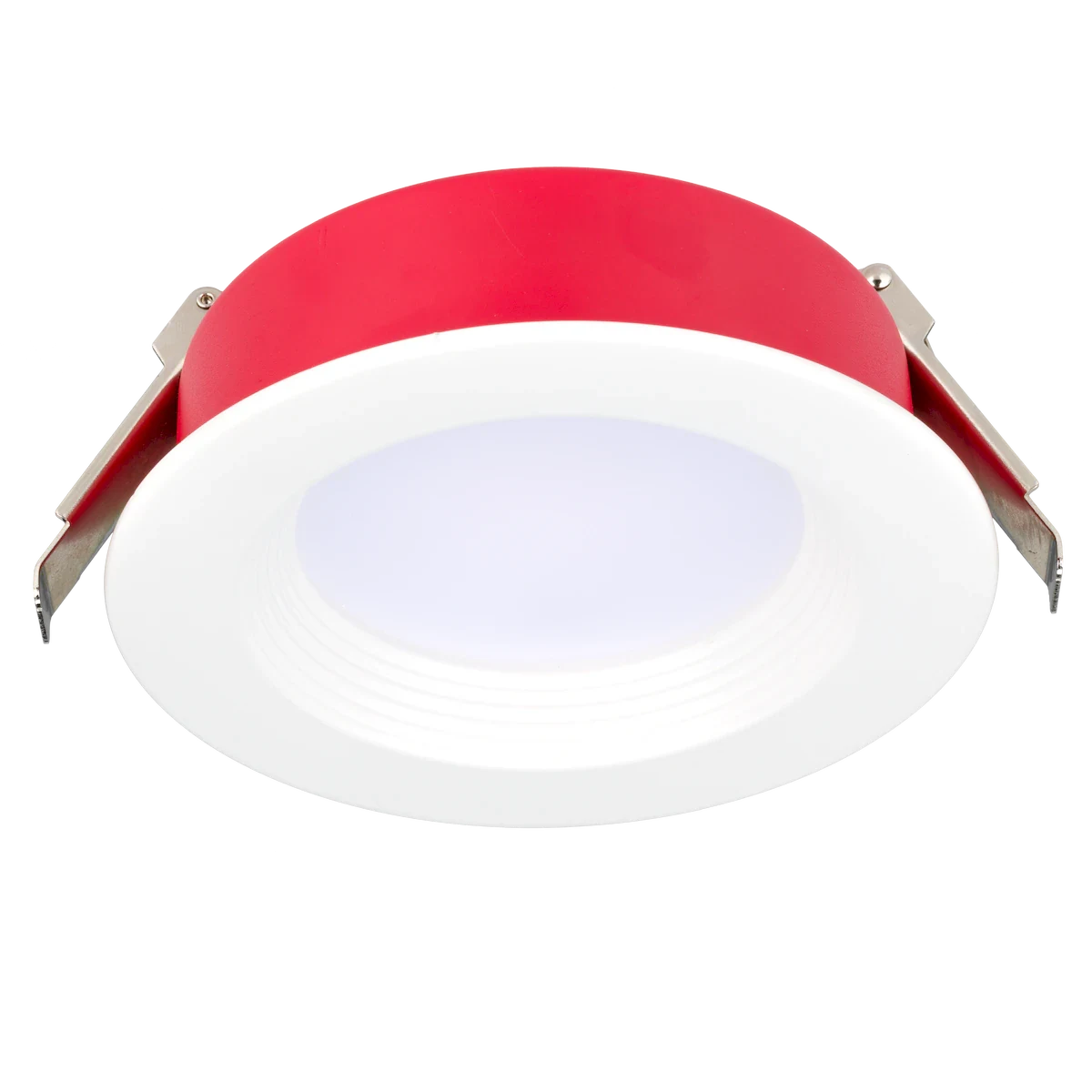

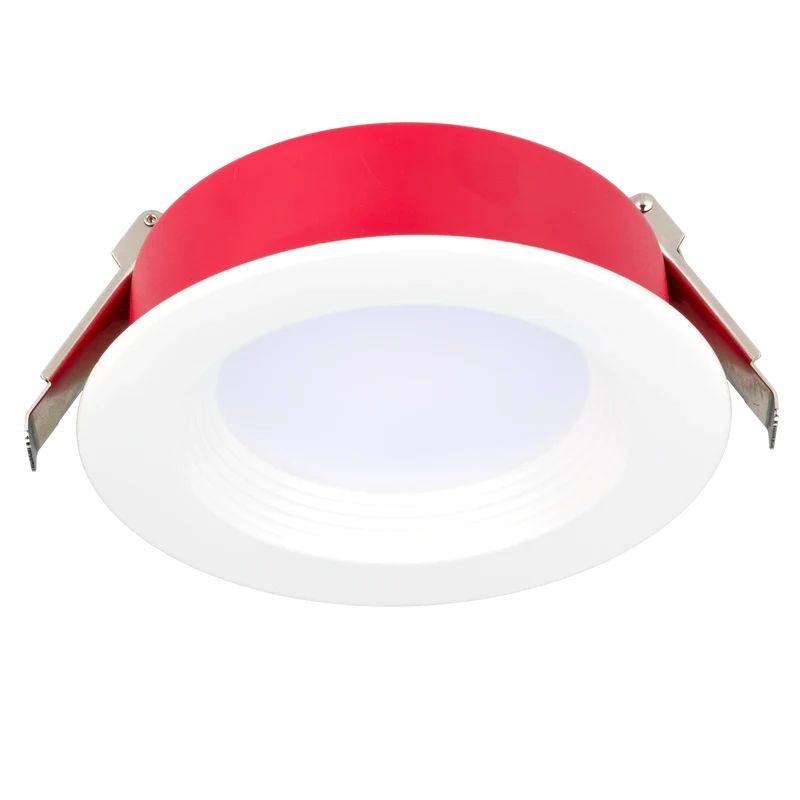

Fire Rated Downlights 6inch
SERIES
C-AML-FRD-6IN
Warm dim technology provides the glow and ambience of traditional incandescent lighting with flicker-free, smooth transition, high efficiency LED Lighting. These 4” downlights have been designed with style in mind. A sleek body with polished finish and engineered optics provide the perfect solution for general and accent lighting.
- Excellent color rendering (90+ CRI)
- Aluminum housing with polycarbonate lens
- Warm Dim from 3000K-1800K
- Lumen output up to 800 Lumens
- Available in 4” static and 4” gimbal with 30° lens tilt
- Dimmable with most TRIAC/ELV dimmers
- Spring loaded mounting clips for direct install
- Type IC and cETLus Listed for Damp locations
- 50,000 hours rated life
Performance
Input Voltage
120V AC
CCT
5CCT
Finish
White
Wattage
15W
Rated Life (Hr)
50,000 Hours
Temperature Range
-20°C (-4°F) to 40°C (104°F)
Dimming
Dimmable (10-100%) with most ELV, TRIAC dimmers or 0-10V
Lumens
1100Lm
Certification
Safety Rating
cETLus Listed
Location Rating
Wet
Title 24
Y
Type IC
Y
Airtight
Y
Indoor
Y
FCC
Y
| Item Number | Input Voltage | CCT | CRI | Wattage | Lumens | UOM |
|---|---|---|---|---|---|---|
| FRD-SLIM-5CCT-6-WH | 100-277V AC | 5CCT | 90 | 15 W | 1100 | Each |
| FRD-SLIMBAF-5CCT-6-WH | 100-277V AC | 5CCT | 90 | 15 W | 1100 | Each |
| FRD-DEEPBAF-5CCT-6-WH | 100-277V AC | 5CCT | 90 | 15 W | 1100 | Each |
