Canvas Static White
SERIES
C-AML-CNVS

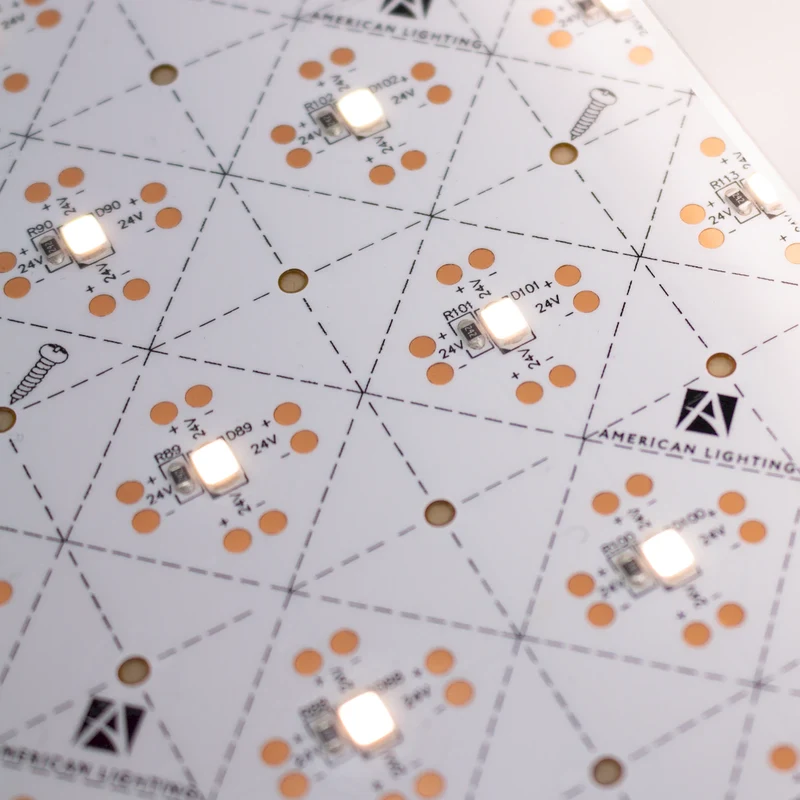

The Canvas Light Sheet is the ideal product for backlighting semi-transparent countertops and architectural features. Cut the 12” x 24” sheet to size at the job site to achieve a perfect fit for your application. Built-in spacers help lift your material a half-inch off the light sheet for a leveled and diffused effect.
- Available in 3000K / 4000K / 5000K
- Ideal for backlighting semi-translucent materials
- Up to 2050Lm output performance per sheet
- Available in 12”H x 24”W sheet size
- Field cuttable on-site for an accurate fit
- 1” x 1” Cuttability and LED spacing
- 3M peel and stick backing for quick installation
- Built-in terminal ports make it easy to run power from any side
- Integrated 1/2” stand-offs spaced every 8 inches
- Each Stand-off is rated up to 35lb load rating (220lbs per sheet)
- 50,000 hours rated life / 5-year limited warranty
Performance
Input Voltage
24V DC
CCT
3000K / 4000K / 5000K
Wattage
20W
Optics (Degree)
120 degrees
CRI
90+
Cut Increment
Static White = 1 Inch x 1 Inch / Tunable CCT = 2 Inch x 1 Inch / RGBW = 6 Inch x 2 Inch
Max Run
96W
Rated Life (Hr)
50,000 Hours
Temperature Range
-20°C (4°F) to 45°C (113°F)
Lumens
2050Lm
Certification
Safety Rating
cULus Listed
Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
---|---|---|---|---|---|---|---|---|---|
CNVS-WW-12x24 | 24 Inch | 24V DC | 3000K | 90+ | 20 W | 1925 | 96 W | IP54 | CS2 |
CNVS-WH-12x24 | 24 Inch | 24V DC | 4000K | 90+ | 20 W | 2000 | 96 W | IP54 | CS2 |
CNVS-CW-12x24 | 24 Inch | 24V DC | 5000K | 90+ | 20 W | 2050 | 96 W | IP54 | CS2 |
