Canvas Sheet 12x24 RGBW

SERIES
CNVS-RGBW-12x24

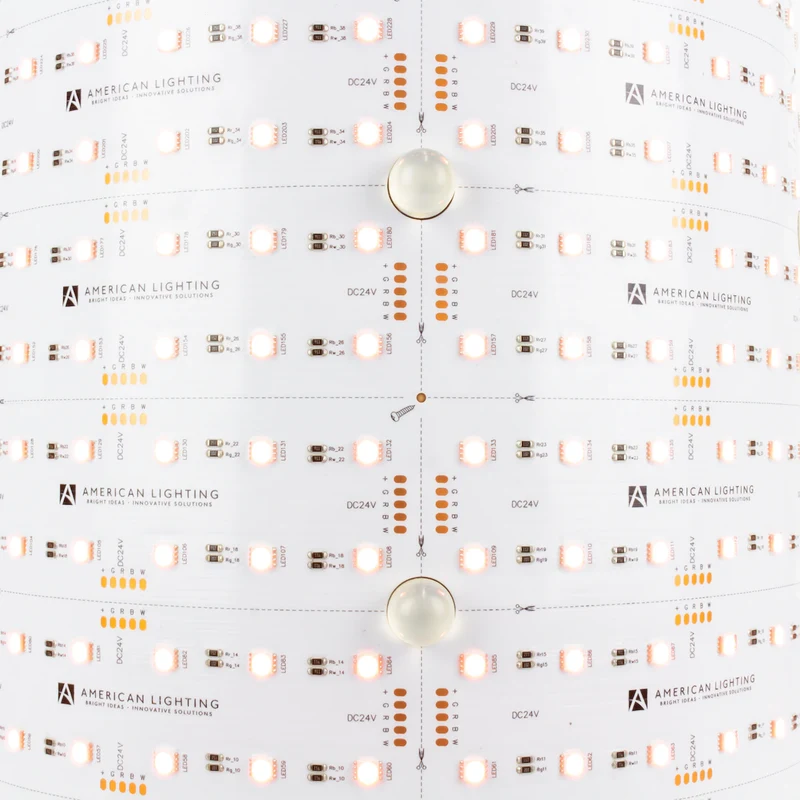

The Canvas Light Sheet is the ideal product for backlighting semi-transparent countertops and architectural features. Cut the 12” x 24” sheet to size at the job site to achieve a perfect fit for your application. Built-in spacers help lift your material a half-inch off the light sheet for a leveled and diffused effect.

  • 4-in-1 RGB + 3000K Warm White
  • Ideal for backlighting semi-translucent materials
  • Up to 1000Lm output performance per sheet
  • Available in 12”H x 24”W sheet size
  • Field cuttable on-site for an accurate fit
  • 6” x 2” Cuttability and 1” X 1” LED spacing
  • 3M peel and stick backing for quick installation
  • Built-in terminal ports make it easy to run power from any side
  • Integrated 1/2” stand-offs spaced every 6 inches
  • Each Stand-off is rated up to 35lb load rating (220lbs per sheet)
  • 50,000 hours rated life / 5-year limited warranty
Canvas Sheet 12x24 RGBW
Canvas Sheet 12x24 RGBW Canvas Sheet 12x24 RGBW

Performance

Input Voltage
24V DC
UV Inhibitor
N
Wattage
20 W
CCT
RGBW
CRI
90+
Lumens
1000
Cut Increment
6 X 2 in
Max Run
96 W
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to 45C (113F) degrees
Dimming
PWM 5 - 100%
Quantity
2
Spacing
1 Inch x 1 Inch

Physical

Weight
1.90 lbs
Width
12 Inch
Length
24 Inch
Height
0.47 Inch

Certification

Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
CNVS-RGBW-12x24 24 Inch 24V DC RGBW 90+ 20 W 1000 96 W IP54 CS2
