High Density Canvas Sheet 12x24 Tunable White 2700K-6000K
SKU
CNVSHD-TW-12x24

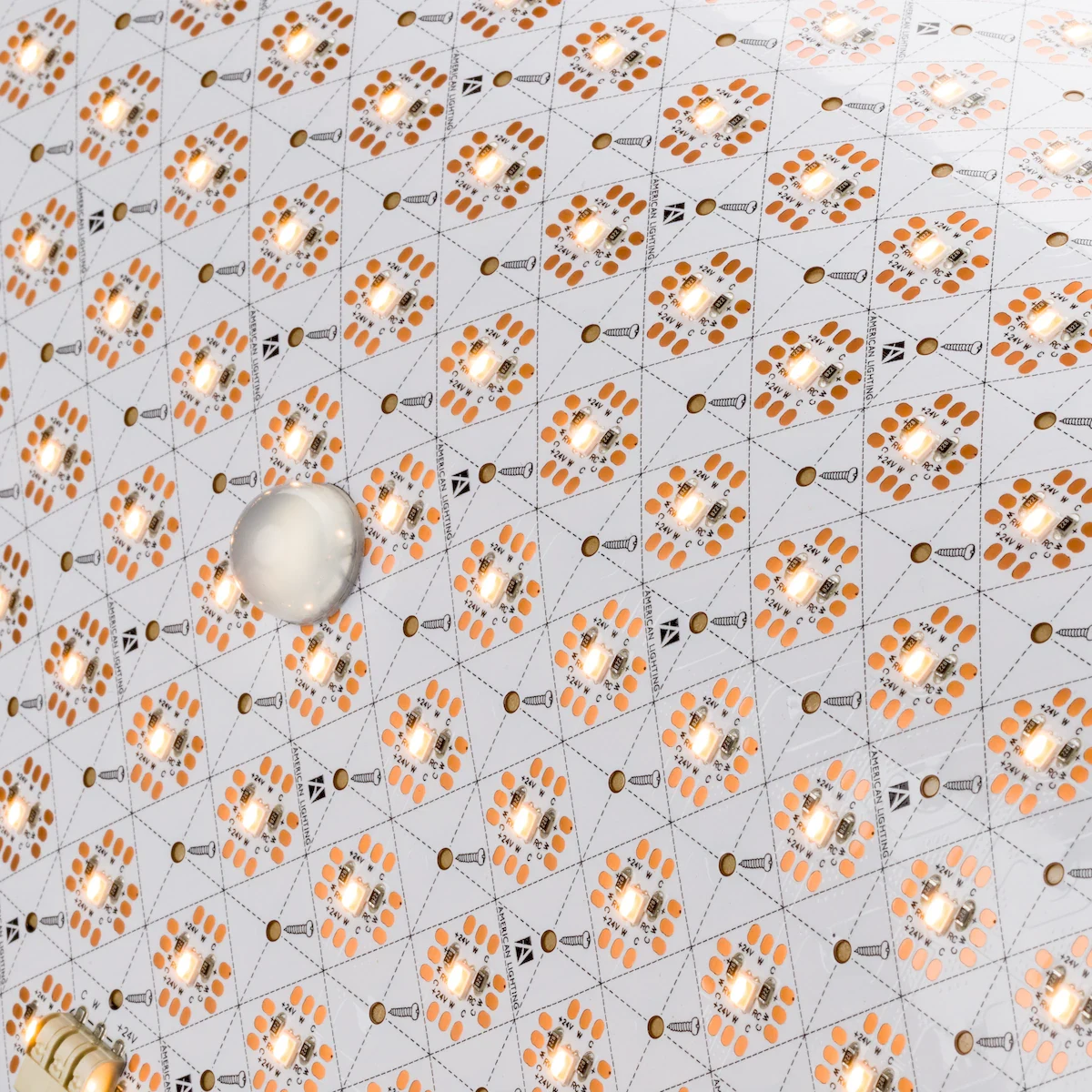

The Canvas High Density Light Sheet is the ideal product for backlighting semi-transparent countertops and architectural features. Cut the 12” x 24” sheet along the marked sections at the job site to achieve a perfect fit for your application. Built-in spacers help lift your material a half-inch off the light sheet for a leveled and diffused effect.
- Tunable CCT 2700K to 6000K Color Tuning
- Ideal for backlighting semi-translucent materials
- Up to 1850Lm output performance per sheet
- Available in 12”H x 24”W sheet size
- Field cuttable on-site for an accurate fit

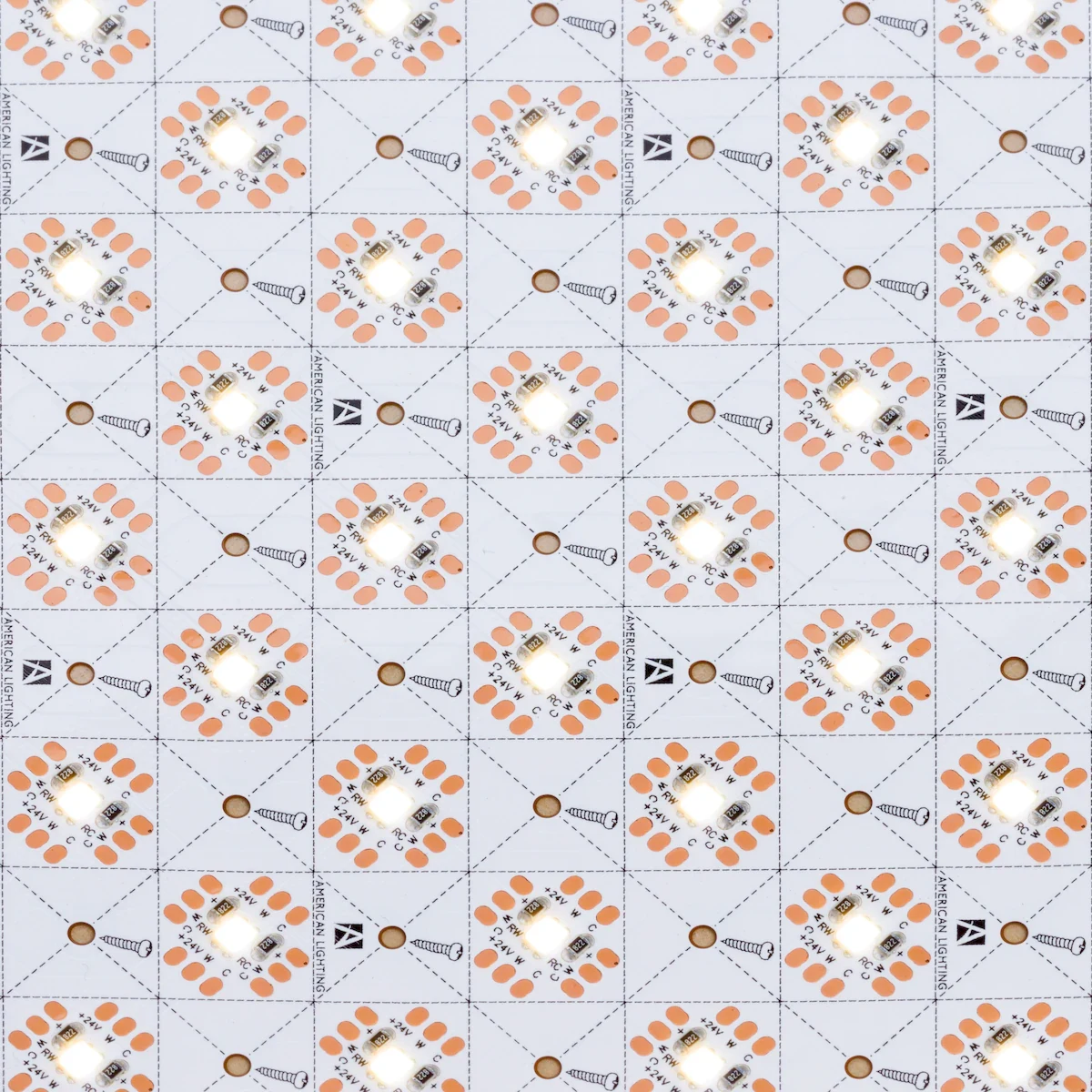

- 0.75” x 0.75” Cuttability and LED spacing
- 3M peel and stick backing for quick installation
- Built-in terminal ports make it easy to run power from any side
- Each 1/2” stand-off is rated up to 35lb load (220lbs per sheet)
Performance
Input Voltage
24V DC
CCT
TW
CRI
90
Lumens
1850
Cut Increment
0.75 in
Max Run
1850 W
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000
Temperature Range
-20°C (4°F) to 45°C (113°F)
Physical
Weight
3.33 lbs
Width
12 Inch
Length
24 Inch
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|
| CNVSHD-TW-12x24 | 24 Inch | 24V DC | TW | 90 | 1850 | 1850 W | IP54 | CS2 |
