Commercial Coaxial 5MM Light String

SERIES
C-AML-5MM-Coax

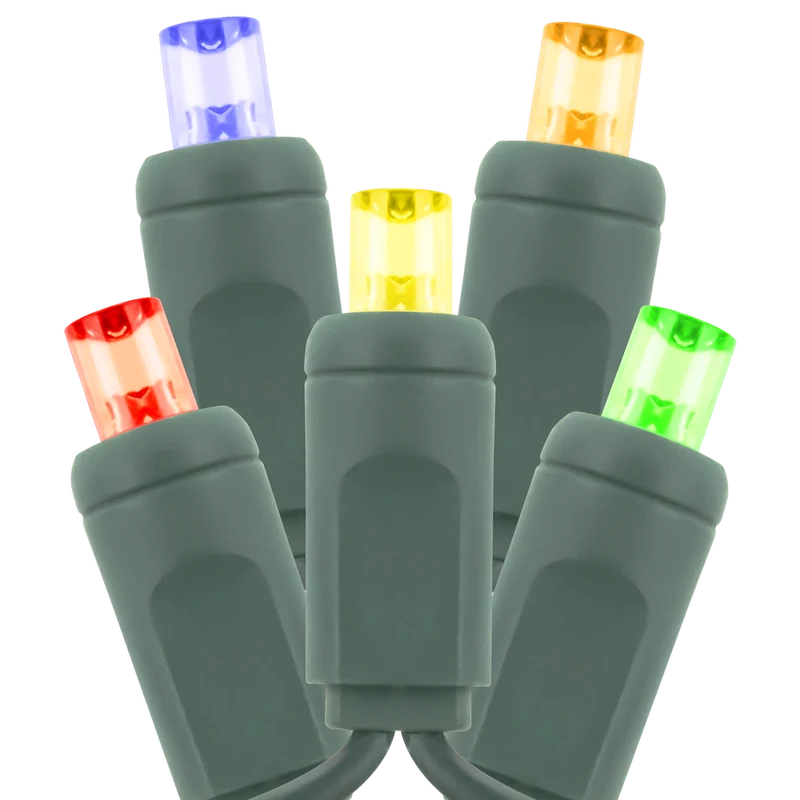

This lens is 5MM tall with an inverted cone at the top of the lens that disperses the very directional light from the LEDs to more closely approximate the sparkle of incandescent mini lights. Our most popular lens type is offered in 8 different colors and features commercial coaxial connections for all season use.

  • Up to 90% energy savings over incandescent light string
  • Max run of 240 watts for 50/6 strings and 420 watts for 25/6 strings
  • Coaxial power connection system provides strain relief and keeps moisture out of connections
  • Durable construction includes thicker 20AWG wire
  • Available in 6 different color options
  • Connection accessories available for large scale installations while minimizing connections to power
  • CSAus Certified (25/6 strings) or ETLus Listed (50/6 strings) for indoor and outdoor use
  • 3-season warranty
Commercial Coaxial 5MM Light String
Commercial Coaxial 5MM Light String Commercial Coaxial 5MM Light String

Performance

Input Voltage
120V AC
CCT
Blue / Green / Multi / Pure White / Red / Ultra Warm White
Finish
Green
Wattage
2.4W / 4.8W
Max Run
240W / 420W
Rated Life (Hr)
60,000 Hours

Certification

Safety Rating
CSAus Certified (25/6 strings) or ETLus Listed (50/6 strings)
Location Rating
Wet
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT Wattage Max Run UOM
5MM-25/6-G-UWW 12.5 Foot 120V AC 2700K 2.4 W 420 W Each
5MM-25/6-G-PW 12.5 Foot 120V AC 7000K 2.4 W 420 W Each
5MM-25/6-G-BL 12.5 Foot 120V AC Blue 2.4 W 420 W Each
5MM-50/4-G-UWW 16.8 Foot 120V AC 2700K 4.8 W 240 W Each
5MM-50/4-G-PW 16.8 Foot 120V AC 7000K 4.8 W 240 W Each
5MM-50/6-G-UWW 25 Foot 120V AC 2700K 4.8 W 420 W Each
5MM-50/6-G-PW 25 Foot 120V AC 7000K 4.8 W 240 W Each
5MM-50/6-G-MU 25 Foot 120V AC Assorted 2.4 W 240 W Each
5MM-50/6-G-BL 25 Foot 120V AC Blue 4.8 W 240 W Each
5MM-50/6-G-GR 25 Foot 120V AC Green 4.8 W 240 W Each
5MM-50/6-G-RE 25 Foot 120V AC Red 2.4 W 240 W Each
