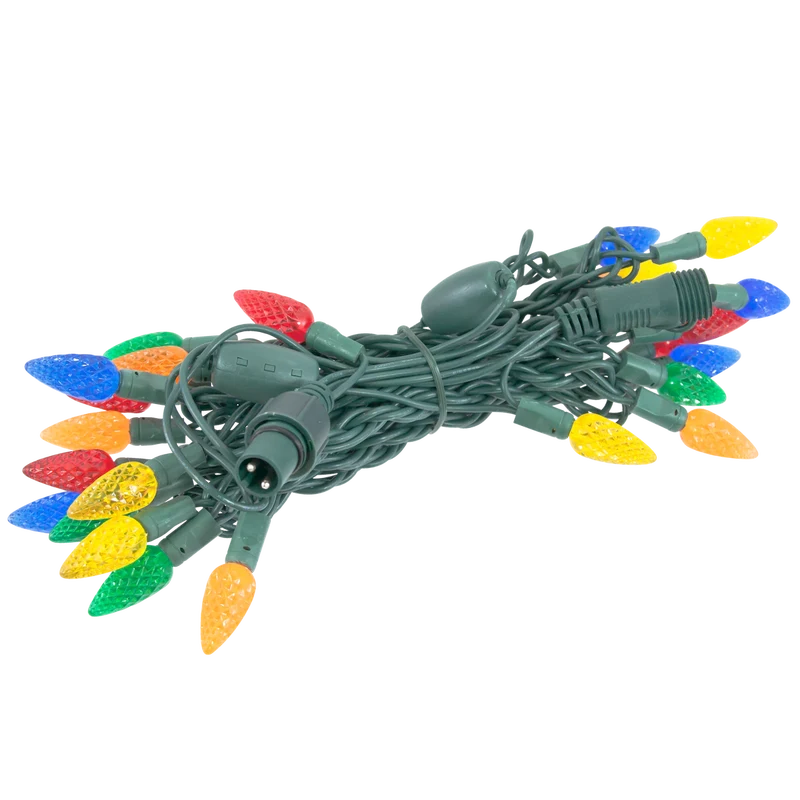

Commercial Coaxial C6 Light String

SERIES

C-AML-C6-Coax

The largest in the commercial coaxial line, the C6 is a strawberry-shaped lens slightly smaller than it’s popular counterpart, the C7 bulb. Enjoy longer runs of light and easier installation using commercial LEDs, with water tight coaxial connectors to reduce maintenance time during the busy holiday season.

Up to 90% energy savings over incandescent light string
Connect up to 125 light strings to a single power source
Coaxial power connection system provides strain relief and keeps moisture out of connections
Durable construction includes thicker 20AWG wire
Available in 7 different color options
Connection accessories available for large scale installations while minimizing connections to power
CSAus (420W max) / ETLus (240W max) Certified for indoor and outdoor use
3-season warranty

Specifications

Performance

Input Voltage

120V AC

CCT

Blue / Green / Multi / Pink / Pure White / Red / Ultra Warm White

Finish

Green

Wattage

2.4W / 4.8W

Max Run

420W (25/6) / 240W (50/6)

Rated Life (Hr)

60,000 Hours

Certification

Safety Rating

CSA Rated (25/6) / ETL Listed (50/6)

Location Rating

Wet

Indoor

Outdoor

Ordering Information

Item Number	Length	Input Voltage	CCT	Wattage	Max Run	UOM
C6-25/6-G-BL	12.5 Foot	120V AC	Blue	2.4 W	420 W	Each
C6-25/6-G-PI	12.5 Foot	120V AC	Pink	2.4 W	420 W	Each
C6-25/6-G-PW	12.5 Foot	120V AC	7000K	2.4 W	420 W	Each
C6-25/6-G-RE	12.5 Foot	120V AC	Red	2.4 W	420 W	Each
C6-50/6-G-BL	25 Foot	120V AC	Blue	4.8 W	240 W	Each
C6-50/6-G-GR	25 Foot	120V AC	Green	4.8 W	240 W	Each
C6-50/6-G-MU	25 Foot	120V AC	Assorted	2.4 W	240 W	Each
C6-50/6-G-PW	25 Foot	120V AC	7000K	4.8 W	240 W	Each
C6-50/6-G-RE	25 Foot	120V AC	Red	2.4 W	240 W	Each
C6-50/6-G-UWW	25 Foot	120V AC	2700K	4.8 W	240 W	Each
