Commercial Coaxial G12 Light String
SERIES
C-AML-G12-Coax

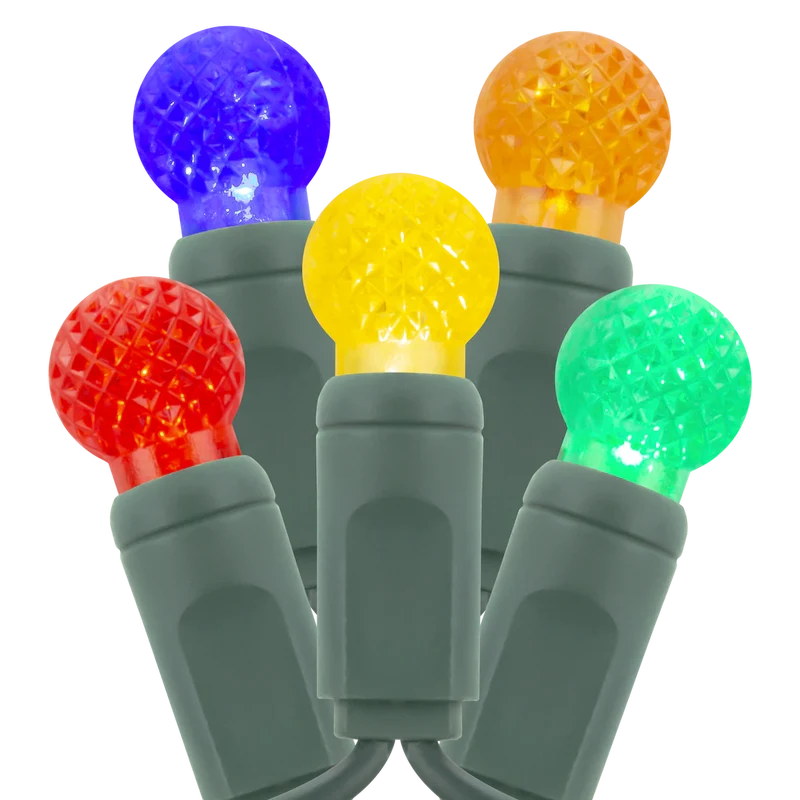

The G12 is a spherical, 12mm in diameter faceted lens that creates a look similar to berries or small orbs where it’s installed. Enjoy longer runs of light and easier installation using commercial LEDs, with water tight co-axial connectors to reduce maintenance time during the busy holiday season.
- Up to 90% energy savings over incandescent light string
- Connect up to 125 light strings to a single power source
- Coaxial power connection system provides strain relief and keeps moisture out of connections
- Durable construction includes thicker 20AWG wire
- Available in 3 different color options
- Connection accessories available for large scale installations while minimizing connections to power
- CSAus Certified for indoor and outdoor use
- 3-season warranty
Performance
Input Voltage
120V AC
CCT
Blue / Pure White / Red
Finish
Green
Wattage
2.4W
Max Run
420W
Rated Life (Hr)
60,000 Hours
Certification
Safety Rating
CSA Certified
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | Wattage | Max Run | UOM |
|---|---|---|---|---|---|---|
| G12-25/6-G-BL | 12.5 Foot | 120V AC | Blue | 2.4 W | 420 W | Each |
| G12-25/6-G-PW | 12.5 Foot | 120V AC | 7000K | 2.4 W | 420 W | Each |
| G12-25/6-G-RE | 12.5 Foot | 120V AC | Red | 2.4 W | 420 W | Each |
Catalog Cut Sheets
