Commercial Coaxial Mini Light String

SERIES

C-AML-MINI-Coax

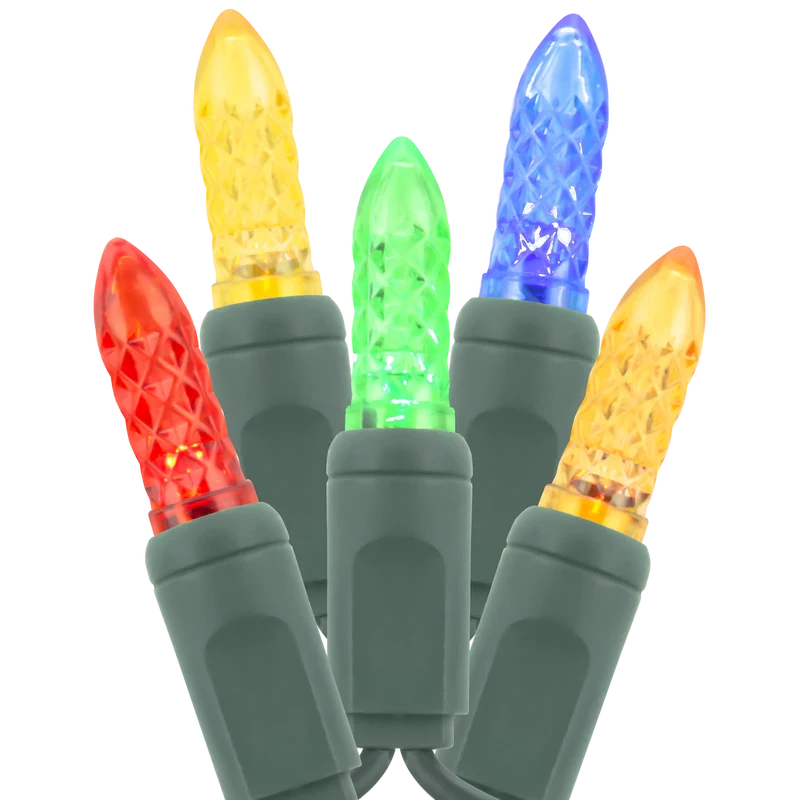

The mini, or M5, lens is designed to look the same as traditional incandescent mini lights that have been used for years. Faceting the lens breaks up directional LED lighting and disperses the light in all directions. For those who are fans of the traditional mini shape, this LED option provides the same look in an energy efficient & long lasting product.

Up to 90% energy savings over incandescent light string
Connect up to 125 light strings to a single power source
Coaxial power connection system provides strain relief and keeps moisture out of connections
Durable construction includes thicker 20AWG wire
Available in 8 different color options
Connection accessories available for large scale installations while minimizing connections to power
CSAus Certified (420W max) / ETLus Listed (240W max) for indoor and outdoor use
3-season warranty

Specifications

Performance

Input Voltage

120V AC

CCT

Blue / Green / Multi / Orange / Pink / Pure White / Red / Ultra Warm White

Finish

Green

Wattage

2.4W / 4.8W

Max Run

420W (25/6) / 240W (50/6)

Rated Life (Hr)

60,000 Hours

Certification

Safety Rating

CSA Rated (25/6) / ETL Listed (50/6)

Location Rating

Wet

Indoor

Outdoor

Ordering Information

Item Number	Length	Input Voltage	CCT	Wattage	Max Run	UOM
MINI-25/6-G-GR	12.5 Foot	120V AC	Green	2.4 W	420 W	Each
MINI-25/6-G-OR	12.5 Foot	120V AC	Orange	2.4 W	420 W	Each
MINI-25/6-G-PW	12.5 Foot	120V AC	7000K	2.4 W	420 W	Each
MINI-25/6-G-RE	12.5 Foot	120V AC	Red	2.4 W	420 W	Each
MINI-25/6-G-UWW	12.5 Foot	120V AC	2700K	2.4 W	420 W	Each
MINI-50/6-G-BL	25 Foot	120V AC	Blue	4.8 W	240 W	Each
MINI-50/6-G-GR	25 Foot	120V AC	Green	4.8 W	240 W	Each
MINI-50/6-G-MU	25 Foot	120V AC	Assorted	2.4 W	240 W	Each
MINI-50/6-G-PW	25 Foot	120V AC	7000K	4.8 W	240 W	Each
MINI-50/6-G-RE	25 Foot	120V AC	Red	2.4 W	240 W	Each
MINI-50/6-G-UWW	25 Foot	120V AC	2700K	4.8 W	240 W	Each
