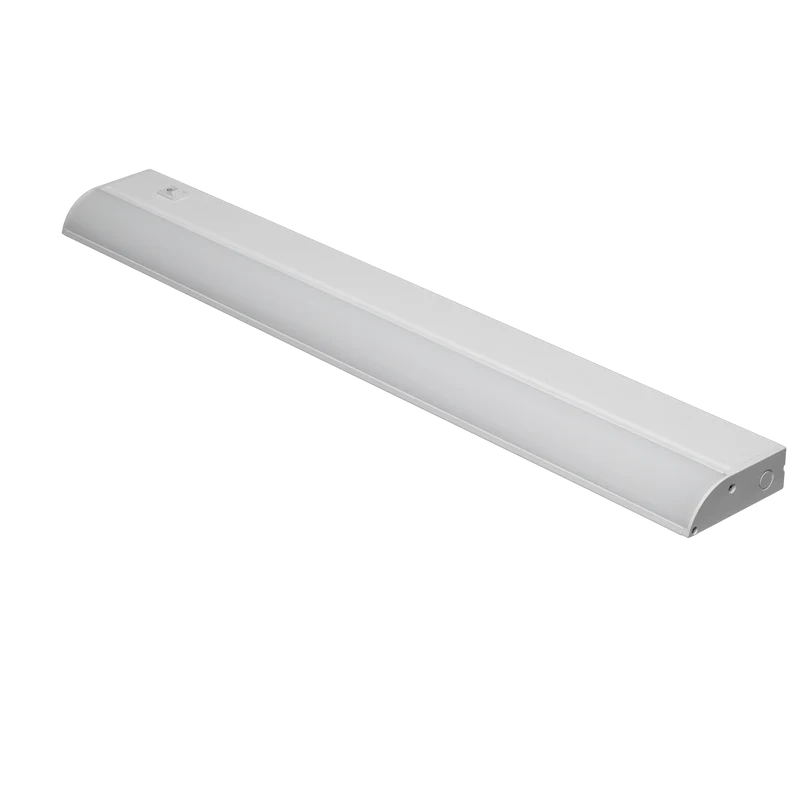

Contrax 2 Undercabinet Light

SERIES
C-AML-LUC2

The economical Contrax2 provides the necessary illuminance for all undercabinet task lighting. With contractor-friendly knock-outs and a versatile access panel, hard-wiring each fixture is simple and straightforward. Available in 3000K, two finishes and five different linear lengths, the Contrax2 will provide the essential task lighting in application.

  • Available in 3000K CCT
  • High color rendering index of 90+ CRI
  • 120V AC Input
  • Low power consumption of up to 25W
  • Surface mount ultra low profile
  • cETLus Listed for dry locations
  • 35,000 hour rated life
Contrax 2 Undercabinet Light
Contrax 2 Undercabinet Light Contrax 2 Undercabinet Light Contrax 2 Undercabinet Light Contrax 2 Undercabinet Light

Performance

Input Voltage
120V AC
CCT
3000K
Finish
White / Dark Bronze
Wattage
Up to 25W
Optics (Degree)
120 Degrees
CRI
90+
Max Run
Non-Linkable
Rated Life (Hr)
35,000 Hours
Dimming
Dimmable (10-100%) with most ELV, TRIAC dimmers
Lumens
Up to 1375Lm

Certification

Safety Rating
cETLus Listed
Location Rating
Dry
Energy Star
Y
Title 24
Y
Indoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens UOM
LUC2-8-30-WH 8 Inch 120V AC 3000K 90+ 4.5 W 270 Each
LUC2-8-30-DB 8 Inch 120V AC 3000K 90+ 4.5 W 270 Each
LUC2-16-30-WH 16 Inch 120V AC 3000K 90+ 10 W 580 Each
LUC2-16-30-DB 16 Inch 120V AC 3000K 90+ 10 W 580 Each
LUC2-24-30-WH 24 Inch 120V AC 3000K 90+ 15 W 870 Each
LUC2-24-30-DB 24 Inch 120V AC 3000K 90+ 15 W 870 Each
LUC2-32-30-WH 32 Inch 120V AC 3000K 90+ 20 W 1160 Each
LUC2-32-30-DB 32 Inch 120V AC 3000K 90+ 20 W 1160 Each
LUC2-40-30-WH 40 Inch 120V AC 3000K 90+ 25 W 1375 Each
LUC2-40-30-DB 40 Inch 120V AC 3000K 90+ 25 W 1375 Each
