Corsa Array Flood RGBW
SKU
CRSA-A1-RGBW-BK

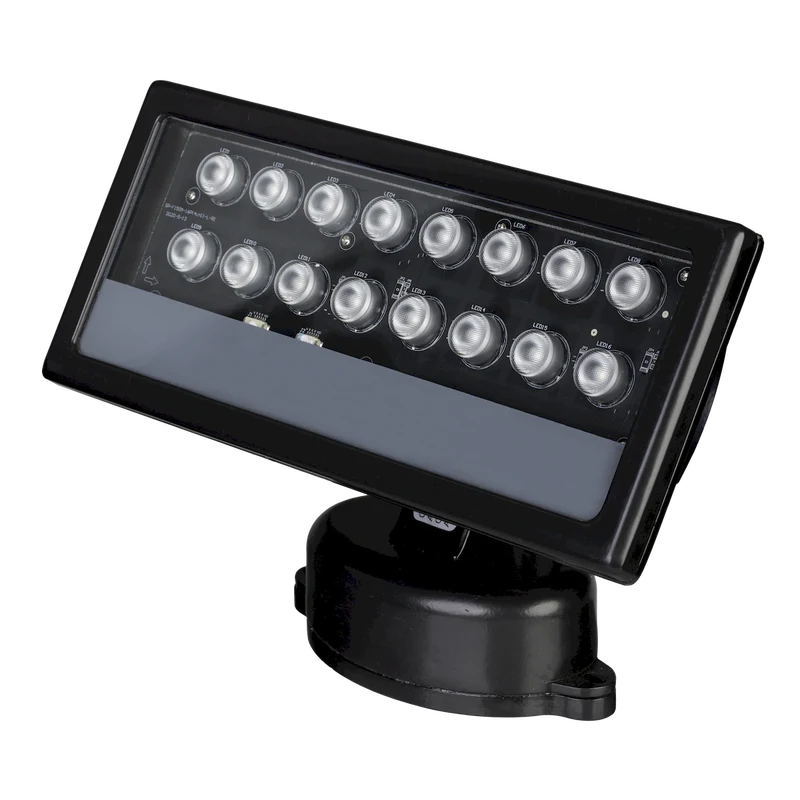

The Corsa Graze Array RGBW flood light is a low-profile fixture with a powerful lumen output that perfectly blends red, green, blue, and 3000K white LEDs to create high-impact flood lighting, both indoors and out. Encased in a durable aluminum alloy housing with a polycarbonate lens, the Corsa Array is designed for big illumination in fixture made to last.
- 100-240V AC, 60Hz
- RGBW (3000K)
- 1280Lm output
- Features built-in driver and 5ft 3x18AWG power cable
- Durable aluminum alloy housing with enamel finish and polycarbonate lens
- Integrated mounting holes in base/leg brackets with adjustable tilt design for flexibility
- IP65 Rated for Indoor and outdoor use
- 30,000 hours rated life
Performance
Input Voltage
100-277V AC
Output Voltage
24V
Input Frequency
50-60Hz
Output Frequency
60Hz
Lens Details
PC
Wattage
40 W
CCT
RGBW
CRI
80
Mounting
10
Power Factor
>0/9
Lumens
1280
Max Run
15 units
Optics (Degree)
30 degrees
Rated Life (Hr)
30,000 Hours
Temperature Range
-20C (-4F) to 45C (113F) degrees
Dimming
DMX
Finish
Black
Quantity
16
Spacing
16pcs
Physical
Weight
10.00 lbs
Width
5.91 Inch
Length
13 Inch
Height
8.27 Inch
Certification
Safety Rating
cETLus Listed
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
ROHS
Y
FCC
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| CRSA-A1-RGBW-BK | 13 Inch | 100-277V AC | RGBW | 80 | 40 W | 1280 | 15 units | IP65 | Each |
ACCESSORIES
-
DMX512 Slider Controller, 30CH, 6 slide, 9-12V DC input9-12V DC • 30CH DMX Controller • DMX 3-Pin Connector
