HP 2

SERIES

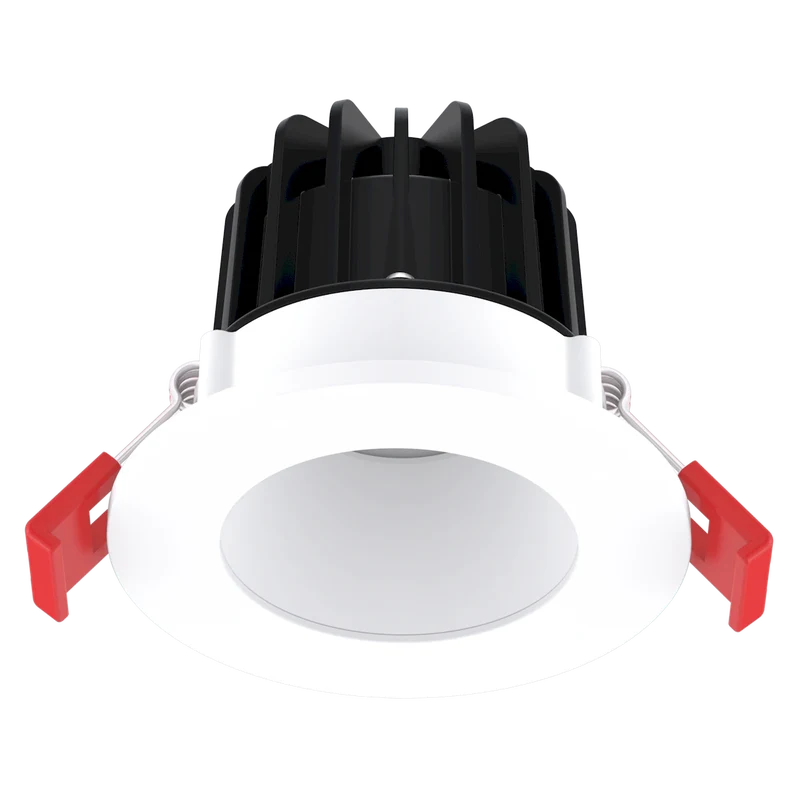

HP2-5CCT-WH

The HP series features quality, convenience, and performance for easy installation in new construction or remodel applications. Available in two lumen performance options with five selectable color temperature settings and 90+ CRI. For finishes, the HP series includes both a white and alzak quick change multiplier for easy customization on the go. Optional pinhole and shower trim lenses available for even greater design options.

  • Excellent color rendering (90+ CRI)
  • Five Selectable color temperatures:
    2700K / 3000K / 3500K / 4000K / 5000K
  • Lumen output up to 550 Lumens
  • Dimmable with most TRIAC, CL, or ELV dimmers
  • Includes easy to change White and Alzak multiplier finishes
  • Remote driver with hardwire junction box
  • Type IC and cETLus Listed for wet locations
  • 50,000 hours rated life
  • ENERGY STAR certified
  • JA8 Compliant
HP 2
HP 2

Performance

Input Voltage
120V AC
Wattage
8 W
CCT
5CCT
CRI
90+
Lumens
550
Optics (Degree)
38 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-25C (-13F) to 40C (104F) degrees
Dimming
TRIAC / ELV 10 - 100%
Finish
White

Physical

Weight
1.1 lbs

Certification

Safety Rating
cETLus Listed
Energy Star
Y
Title 24
Y
Type IC
Y
Location Rating
Wet
Indoor
Y
FCC
Y
Item Number Input Voltage CCT CRI Wattage Lumens UOM
HP2-5CCT-WH 120V AC 5CCT 90+ 8 W 550 Each
