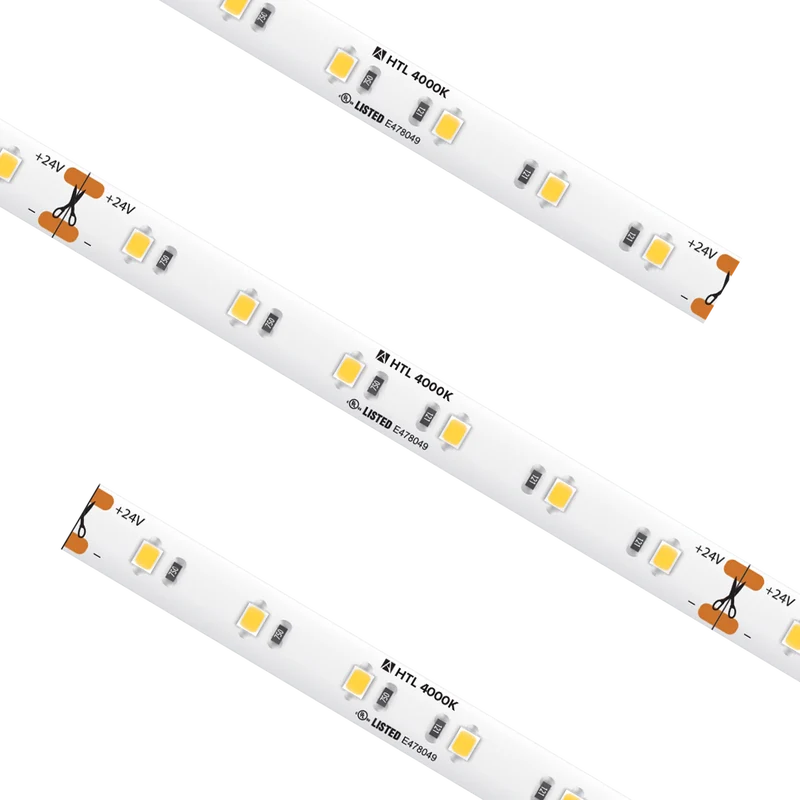

Trulux High Output Tape Light Static White

SERIES

C-AML-HTL

Our most popular tape light option, the High Output series is a go to for most applications in part to the great lumen output with a slightly longer max run. With up to 310 lumens a foot and a max run up to 22 feet, High Output tape light provides a perfect blend of lumens, light quality, and color temperature options for multiple applications.

Excellent color rendering (96+ CRI)
Color temperatures available from 2700K, 3000K, or 4000K
260-310 lumens per foot performance
Consuming only 4.6 watts per foot
Dimmable with most electronic low voltage (ELV) dimmers
Run lengths up to 22 feet and cuttable every 3.94"
cULus Listed for indoor dry/damp, and wet locations
JA8 Compliant
50,000 hours rated life
Suitable for use in closets when used in an enclosed mounting channel and installed in accordance with NFPA 70, NEC section 410.16 (B)(3) and 410.16 (D)(1)(Exception)

Trulux High Output Tape Light Static White

Performance

Input Voltage

24V DC

CCT

2700K / 3000K / 3500K / 4000K / 5000K

Wattage

4.6/ft

Optics (Degree)

120 degrees

CRI

90+

Cut Increment

3.94 Inch

Max Run

22ft

Rated Life (Hr)

50,000 Hours

Temperature Range

5°C (41°F) to 70°C (158°F)

Dimming

Dimmable (5-100%) with most ELV, TRIAC dimmers

Lumens

310Lm/ft

Certification

Safety Rating

cULus Listed

Item Number	Length	Input Voltage	CCT	CRI	Wattage	Lumens	Max Run	IP Rating	UOM
HTL-UWW	16.4 Foot	24V DC	2700K	96+	4.6 W/ft	285	22 ft	IP54	Each
HTL-WW	16.4 Foot	24V DC	3000K	96+	4.6 W/ft	300	22 ft	IP54	Each
HTL-WH	16.4 Foot	24V DC	4000K	96+	4.6 W/ft	310	22 ft	IP54	Each
HTL65-UWW	16.4 Foot	24V DC	2700K	96+	4.6 W/ft	260	22 ft	IP65	Each
HTL65-WW	16.4 Foot	24V DC	3000K	96+	4.6 W/ft	270	22 ft	IP65	Each
HTL-UWW-100	100 Foot	24V DC	2700K	96+	4.6 W/ft	285	22 ft	IP54	Each
HTL-WW-100	100 Foot	24V DC	3000K	96+	4.6 W/ft	300	22 ft	IP54	Each
