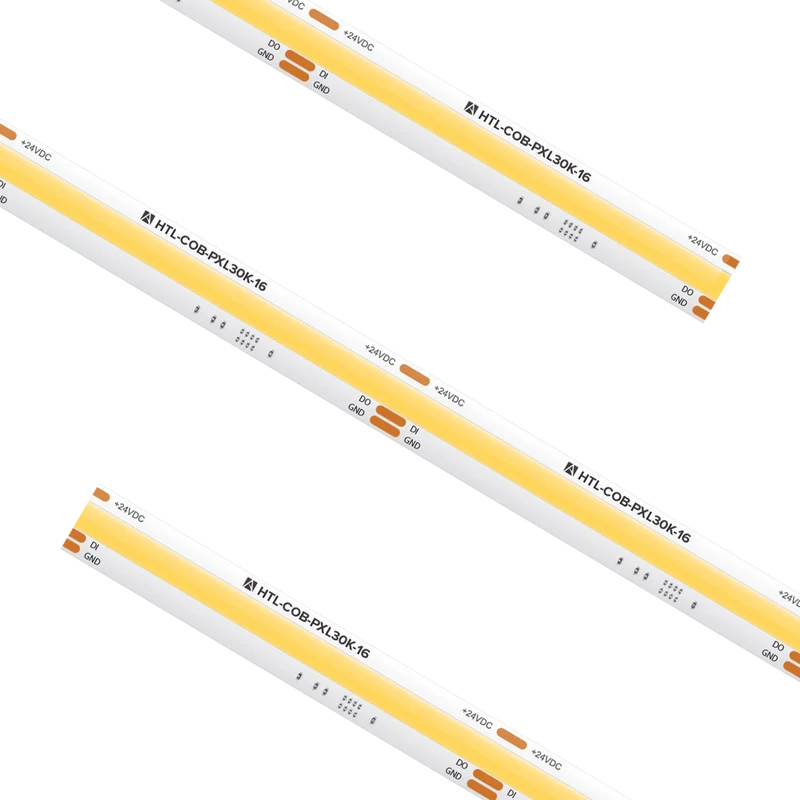

High Output Pixel COB Tape Light IP54 3000K

SKU
HTL-COB-PXL30K-16

Digital pixel COB tape light allows for individually addressable sections, enabling independent control of LED “pixels” spaced 3.94” apart. Featuring a seamless COB design, create endless effects including chasing, popcorning, waves, and strobe with easy to use SPI control protocol.

  • Seamless COB design that eliminates virtually all LED dotting
  • Dynamic, Pixel-based Static White at 3000K CCT
  • Create millions of different effects and lighting styles
  • Up to 280 lumen per foot output performance
  • Cuttable every 3.94” with 16.4ft max run
  • Control via DMX (requires SPI decoder)
  • cULus Listed for indoor dry and damp locations
  • 50,000 hours rated life
High Output Pixel COB Tape Light IP54 3000K
High Output Pixel COB Tape Light IP54 3000K

Performance

Input Voltage
24V DC
Wattage
3 W/ft
CCT
2700K
CRI
90+
Lumens
280

Physical

Weight
3.33 lbs
Width
0.03 Foot
Length
16.4 Foot

Certification

IP Rating
IP54
Item Number Length Input Voltage CCT CRI Wattage Lumens IP Rating UOM
HTL-COB-PXL30K-16 16.4 Foot 24V DC 2700K 90+ 3 W/ft 280 IP54 Each
