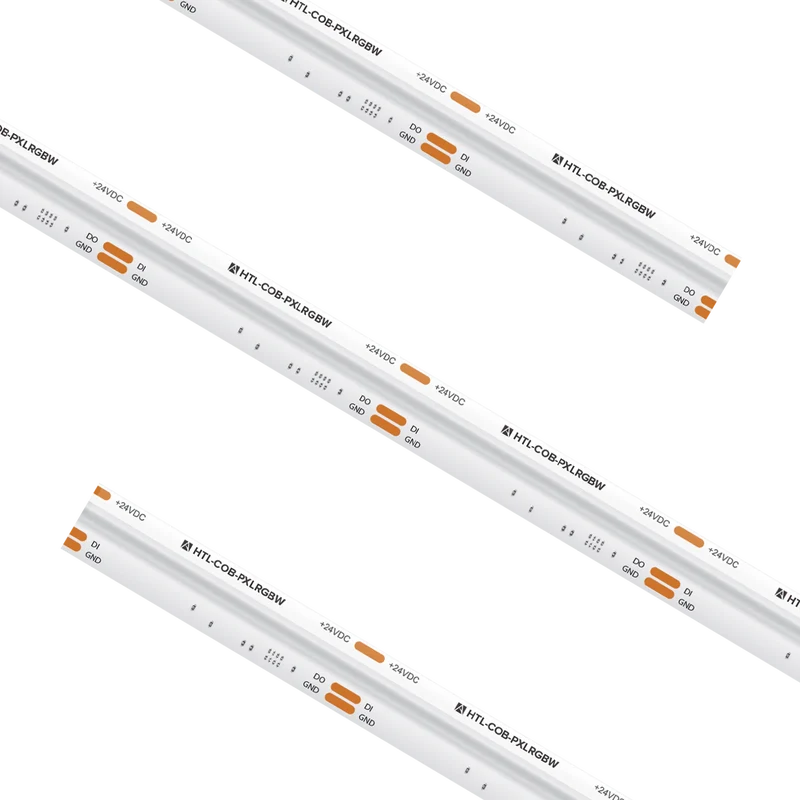

High Output Pixel COB Tape Light IP54 RGBW
SKU
HTL-COB-PXLRGBW-16
Digital pixel COB tape light allows for individually addressable sections, enabling independent control of dynamic color and design. Featuring a seamless COB design, create endless effects including chasing, popcorning, waves, and strobe with easy to use SPI control protocol.
- Seamless COB design that eliminates virtually all LED dotting
- Dynamic, Pixel-based RGBW (3000K) color mixing capabilities
- Create millions of color combinations for impactful installations
- Cuttable every 3.94” with 16.4ft max run
- Control via DMX for color and dimming (requires SPI decoder)
- cULus Listed for indoor dry and damp locations
- 50,000 hours rated life
Performance
Input Voltage
24V DC
Wattage
4.87 W/ft
CCT
Digital Pixel RGBW
Lumens
230
Cut Increment
3.94 in
Max Run
16.4 ft
Rated Life (Hr)
50,000
Physical
Weight
3.33 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
| Item Number | Length | Input Voltage | CCT | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|
| HTL-COB-PXLRGBW-16 | 16.4 Foot | 24V DC | Digital Pixel RGBW | 4.87 W/ft | 230 | 16.4 ft | IP54 | Each |
