Trulux High Output COB Tunable CCT
SERIES
C-AML-HTL-COB-TW

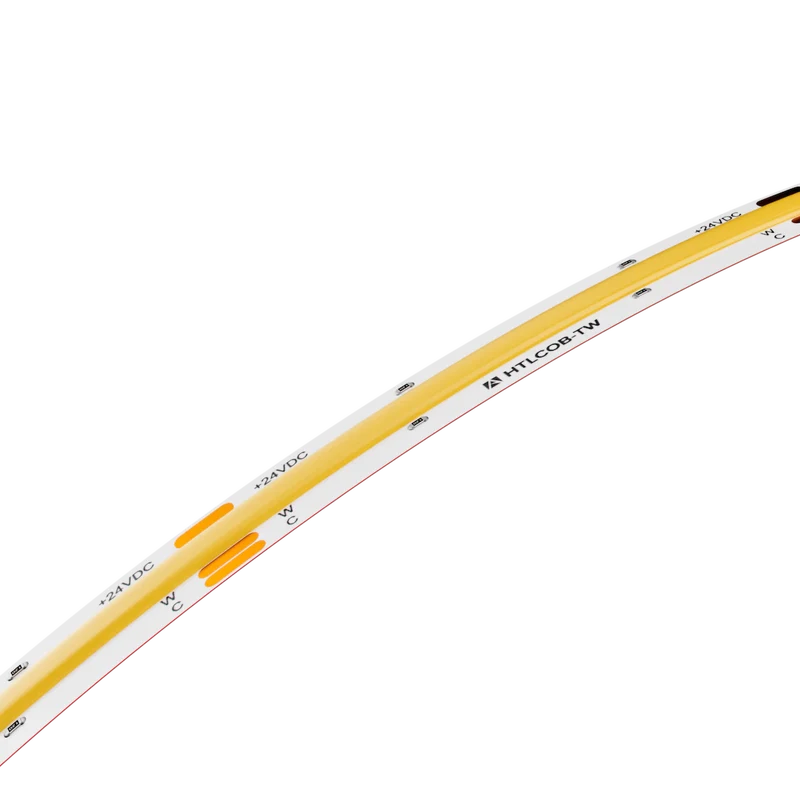

COB Tape Light features uniform illumination without the need for additional diffused covers or accessories. Adjust color temps from 2700K to 6000K and everything in between to create elegant lighting catered to times of day or application setting.
- Seamless COB design that eliminates virtually all LED dotting
- Dynamic white color tuning from 2700K up to 6000K
- 90+ color rendering index
- Up to 400 lumen per foot output performance
- Consumes up to 4.5W per foot
- Cuttable every 2.46” with maximum runs up to 16.4ft
- 5-100% Dimmable with most secondary side controls
- Control color temperature via DMX or secondary side controls
- cULus Listed for indoor dry/damp locations
- 50,000 hours rated life
Performance
Input Voltage
24V DC
CCT
1800K-6000K
Wattage
4.5W/ft
Optics (Degree)
120 degrees
CRI
90+
Cut Increment
2.46 Inch
Max Run
16.4ft
Rated Life (Hr)
50,000 Hours
Temperature Range
5°C (41°F) to 70°C (158°F)
Lumens
400Lm/ft
Certification
Safety Rating
cULus Listed
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| HTL-COB-TW-16 | 16.4 Foot | 24V DC | 2700K-6000K | 90+ | 4.5 W/ft | 400 | 16.4 ft | IP54 | Each |
| HTL-COB-TW-CC | Custom Cut | 24V DC | 2700K-6000K | 90+ | 4.5 W/ft | 400 | 16.4 ft | IP54 | Foot |
