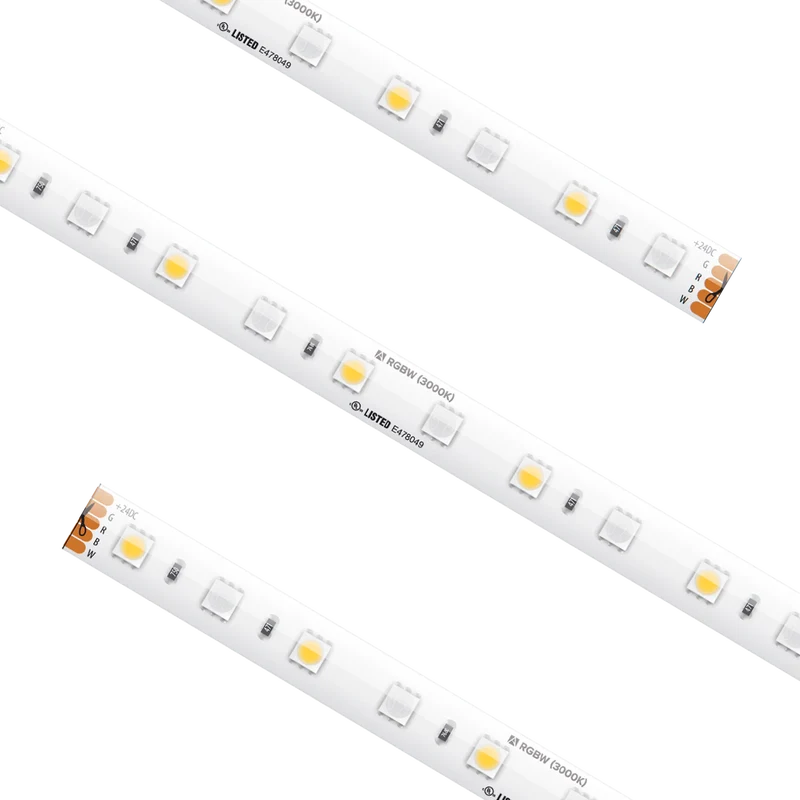

High Output Tape Light IP54 RGBW 16.4Ft

SKU
HTL-RGBW
HI RGBW,IP54,24V,16.4FT RL,4.6W/FT,5050 3-IN-1 &WW ALT. LEDS, 80+CRI, 6.56" CUT,16.4FT MAX, Y0409682/TL-4PWR-HD 12MM 5PIN CONNECTORS(RGB+W) W/6' CABLE
High Output Tape Light IP54 RGBW 16.4Ft
High Output Tape Light IP54 RGBW 16.4Ft

Performance

Input Voltage
24V DC
Wattage
4.4 W/ft
CCT
RGBW
CRI
90+
Lumens
240
Cut Increment
6.56 in
Max Run
22 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
PWM 5 - 100%
Spacing
0.64 Inch

Physical

Weight
0.90 lbs
Width
0.03 Foot
Length
16.4 Foot

Certification

Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
HTL-RGBW 16.4 Foot 24V DC RGBW 90+ 4.4 W/ft 240 22 ft IP54 Each
