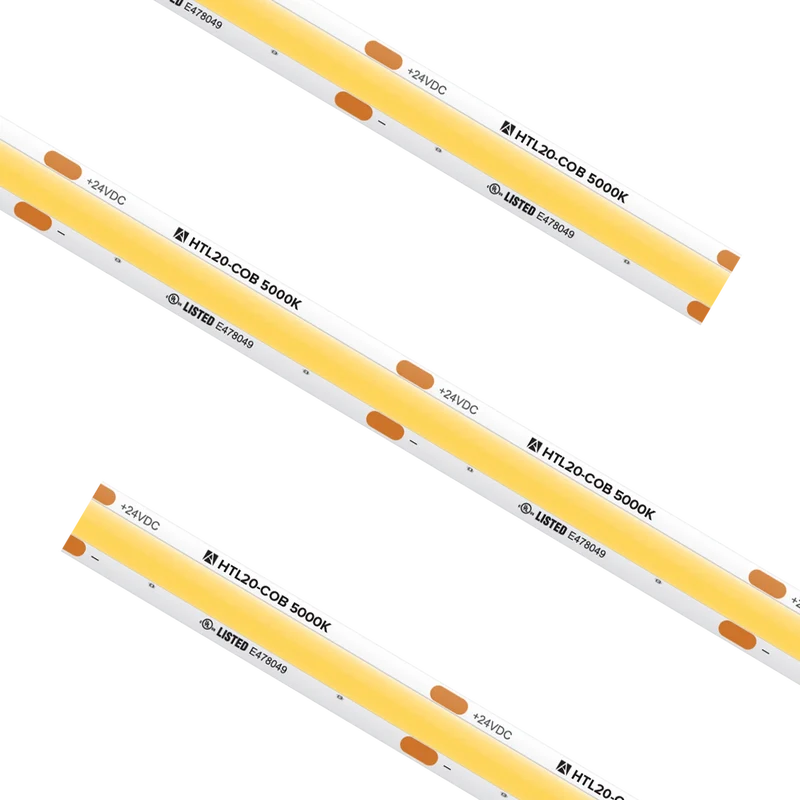

High Output COB Tape Light 5000K 16.4Ft
SKU
HTL20-COB-CW-16
16.4ft Reel HTL COB Tape Light, IP20, 1.96" cut increment, 5000K, 4.5W/ft", W/3 TL-CONKITS, W/3 TL-2PWR-HD
Performance
Input Voltage
24V DC
Wattage
4.5 W/ft
CCT
5000K
CRI
90+
Lumens
448
Cut Increment
1.96 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Physical
Weight
0.90 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
Title 24
Y
IP Rating
IP20
Location Rating
Dry
Indoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| HTL20-COB-CW-16 | 16.4 Foot | 24V DC | 5000K | 90+ | 4.5 W/ft | 448 | 16.4 ft | IP20 | Each |
Specification Sheets
Instruction Manuals
IES Files
