RGB Pixel Tape Light DMX Controlled 16.4Ft
SKU
HTL20-PXL-RGB1-12VDC-16

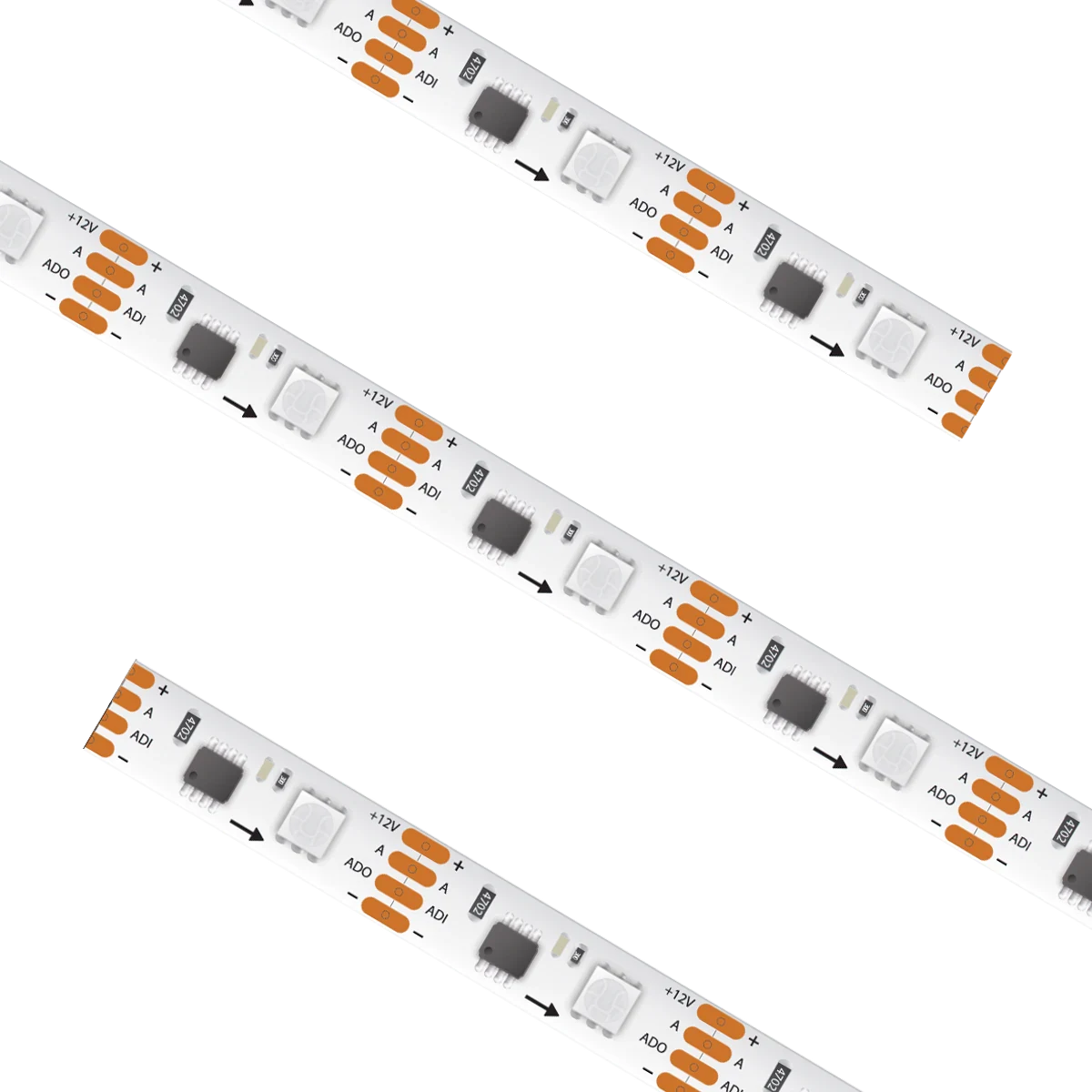

16.4ft reel, digital pixel RGB tape light, 1 LED resolution, IP20
Performance
Input Voltage
12V DC
Input Frequency
60Hz
Wattage
2 W/ft
CCT
RGB
Lumens
35
Cut Increment
1.31 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to 40C (104F) degrees
Dimming
DMX512 0 - 100%
Spacing
33.3 mm
Physical
Weight
0.36 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP20
Location Rating
Dry
Indoor
Y
| Item Number | Length | Input Voltage | CCT | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|
| HTL20-PXL-RGB1-12VDC-16 | 16.4 Foot | 12V DC | RGB | 2 W/ft | 35 | 16.4 ft | IP20 | Each |
