RGBW Dynamic Tape Light DMX Controlled 16.4Ft

SERIES
HTL20-PXL-RGBW6-24VDC-16

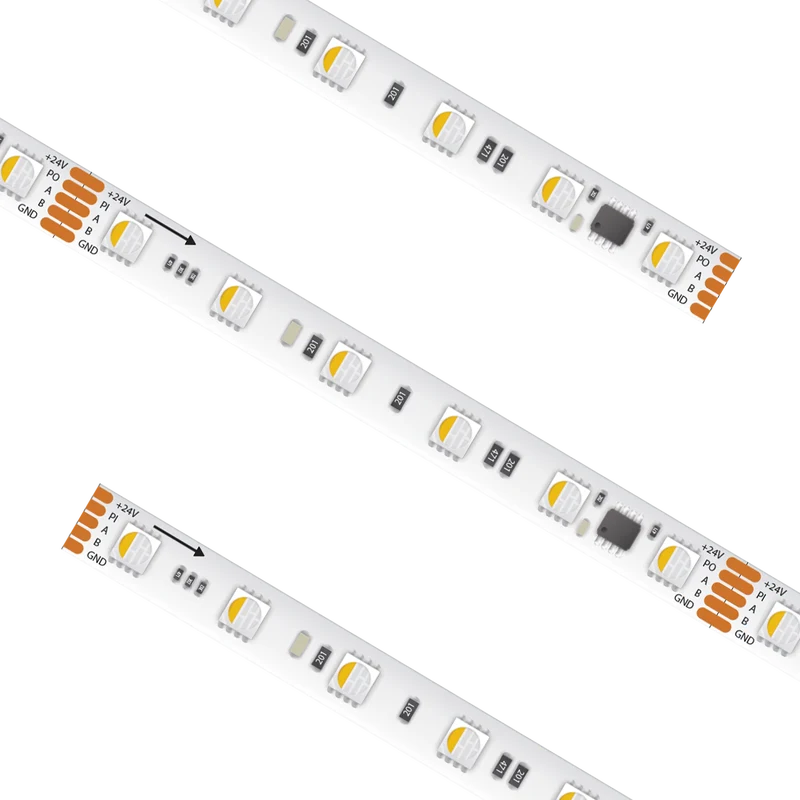

16.4ft reel, digital pixel RGBW tape light, 6LED resolution, IP20
RGBW Dynamic Tape Light DMX Controlled 16.4Ft
RGBW Dynamic Tape Light DMX Controlled 16.4Ft

Performance

Input Voltage
24V DC
Wattage
6.1 W/ft
CCT
Digital Pixel RGBW
CRI
90+
Lumens
95
Cut Increment
3.94 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to 40C (104F) degrees
Dimming
DMX512 0 - 100%
Spacing
16.67mm

Physical

Weight
0.3862 lbs
Width
0.03 Foot
Length
16.4 Foot

Certification

Safety Rating
cULus Listed
IP Rating
IP20
Location Rating
Dry
Indoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
HTL20-PXL-RGBW6-24VDC-16 16.4 Foot 24V DC Digital Pixel RGBW 90+ 6.1 W/ft 95 16.4 ft IP20 Each
