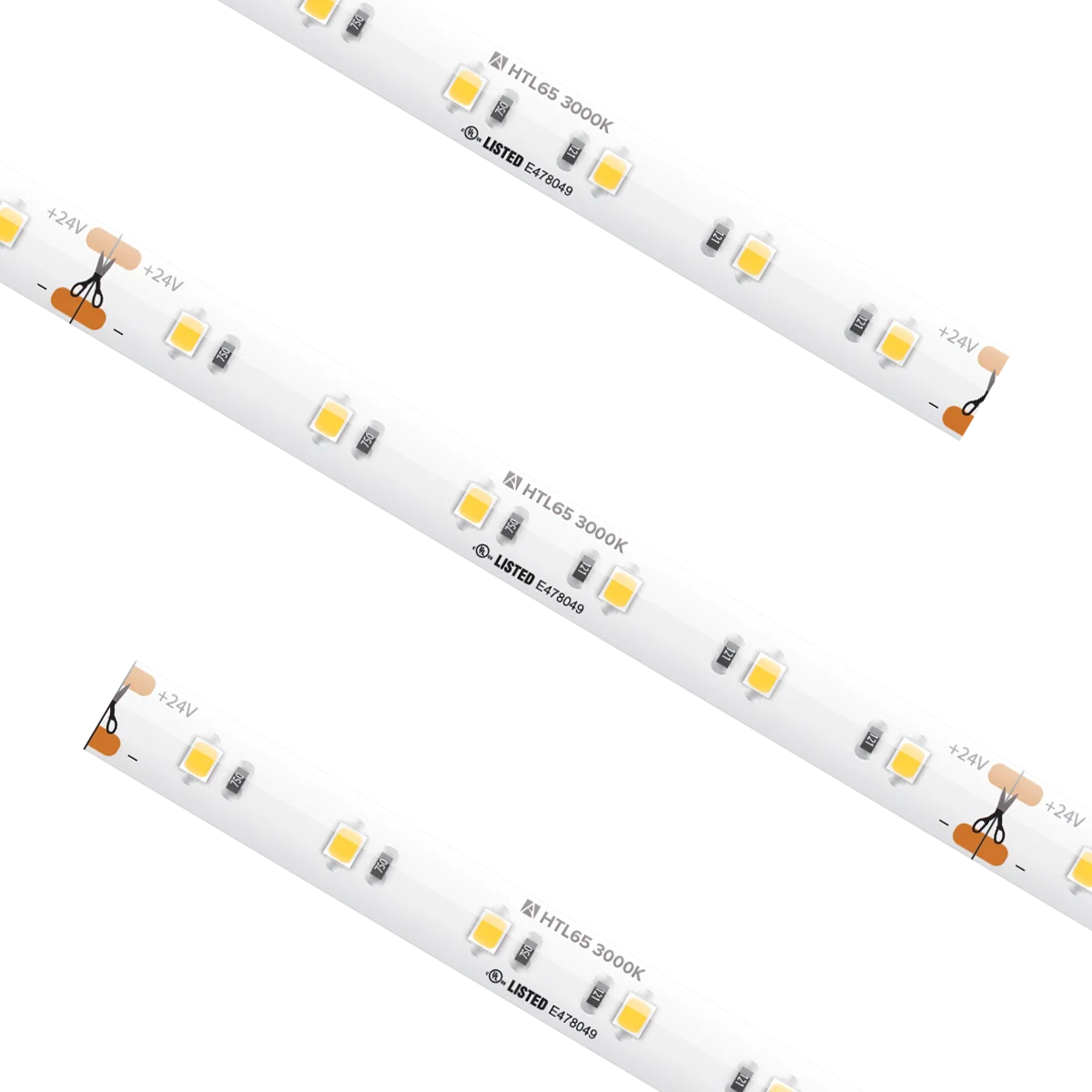

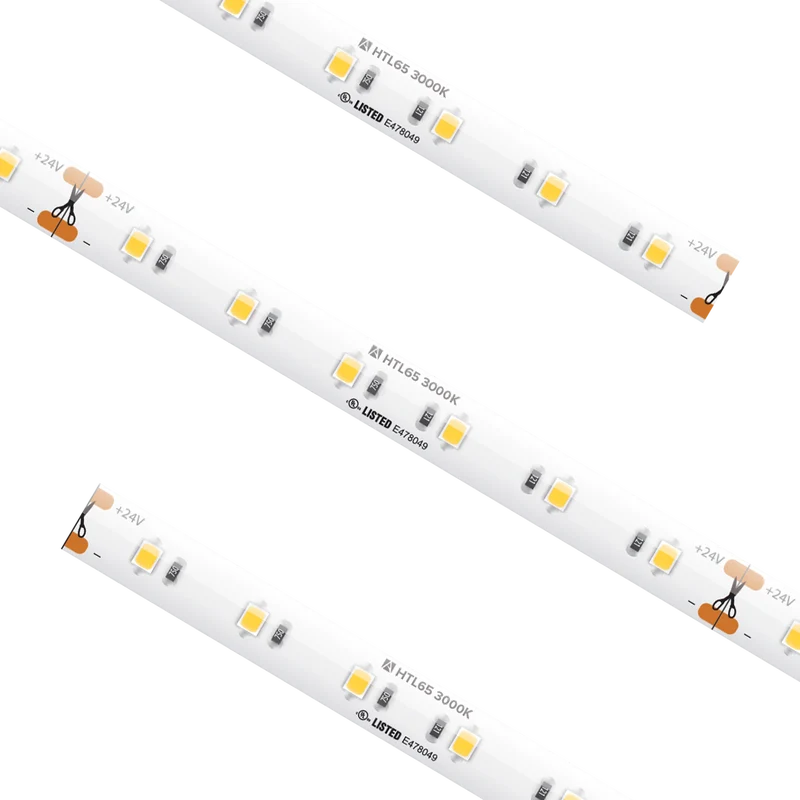

High Output Tape Light IP65 3000K 16.4Ft
SKU
HTL65-WW
HIGH GRADE TAPE IP65,24V,3000K,16.4FT RL W/3 CONKITS,4.4W/FT,W/FCTRY ATTACHED 3FT LEAD WIRE
Performance
Input Voltage
24V DC
Wattage
4.6 W/ft
CCT
3000K
CRI
96+
Lumens
270
Cut Increment
3.94 in
Max Run
22 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Spacing
0.63 Inch
Physical
Weight
0.60 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
Title 24
Y
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| HTL65-WW | 16.4 Foot | 24V DC | 3000K | 96+ | 4.6 W/ft | 270 | 22 ft | IP65 | Each |
