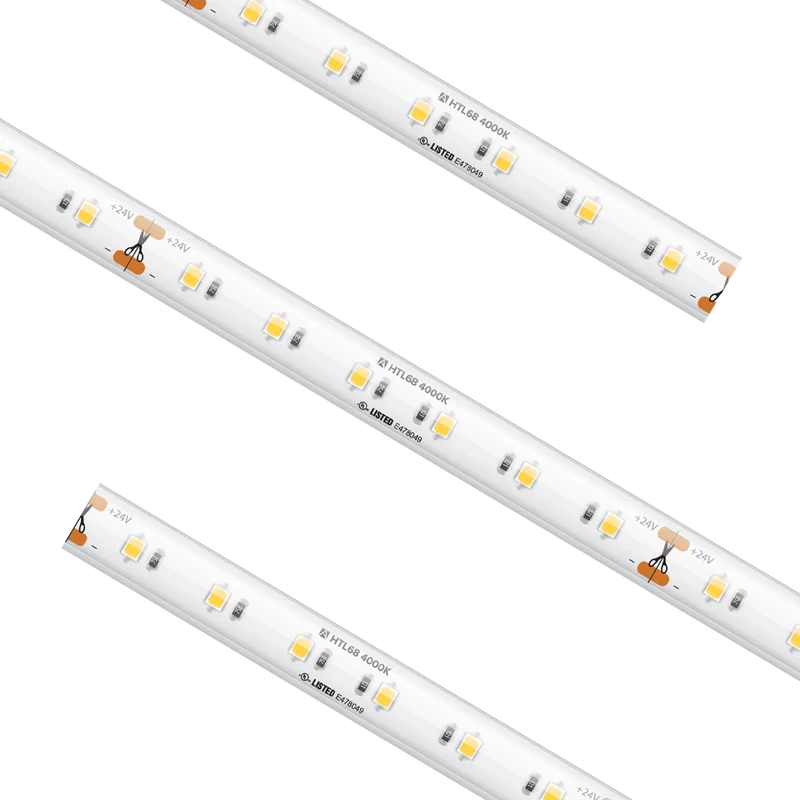

Trulux High Output IP68 Outdoor Tape Light Static White
SERIES
C-AML-HTL68
For water features or wet location applications, IP68 tape is a highly sought after solution. With an IP68 outdoor wet location rating, this tape can withstand most natural elements and can be field cut for custom applications making for a great go to for small ponds and fountain lighting solutions.
- Excellent color rendering (94+ CRI)
- Color temperatures available: 3000K / 4000K
- 270-335 lumens per foot performance
- Consuming only 4.6 watts per foot
- Dimmable with most electronic low voltage (ELV) dimmers
- Run lengths up to 16.4 feet and cuttable every 3.94" (must be properly sealed)
Performance
Input Voltage
24V DC
CCT
2700K / 3000K / 3500K / 4000K / 5000K
Wattage
5W/ft
Optics (Degree)
120 degrees
CRI
90+
Cut Increment
3.94 Inch
Max Run
16.4ft
Rated Life (Hr)
50,000 Hours
Temperature Range
5°C (41°F) to 70°C (158°F)
Dimming
Dimmable (5-100%) with most ELV, TRIAC dimmers
Lumens
448Lm/ft
Certification
Safety Rating
cULus Listed
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| HTL68-WW | 16.4 Foot | 24V DC | 3000K | 94+ | 4.6 W/ft | 270 | 16.4 ft | IP68 | Each |
| HTL68-WH | 16.4 Foot | 24V DC | 4000K | 94+ | 4.6 W/ft | 335 | 16.4 ft | IP68 | Each |
Catalog Cut Sheets
Specification Sheets
Instruction Manuals
Catalogs/Brochures
