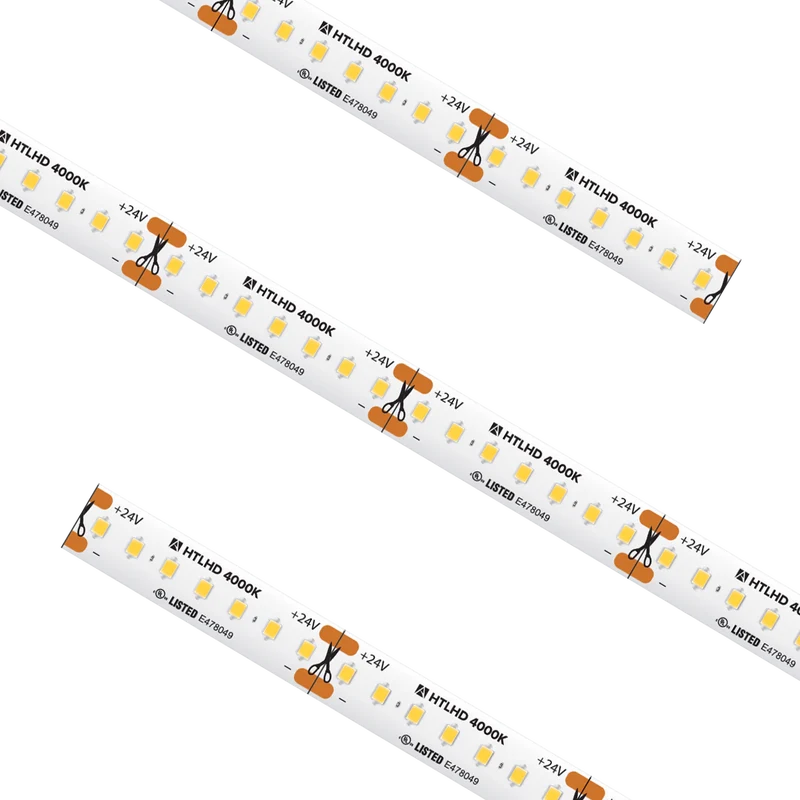

Trulux High Output HD Tape Light Static White
SERIES
C-AML-HTLHD
High Output HD tape light utilizes a powerful new type of LED to achieve substantially more lumens per foot while using less watts per foot than our original High Output tape light. Tightly spaced LEDs also allow High Output HD tape light to be cut every 1.51 inches – making for an ideal fit in any application.
- High Density (HD) LED spacing in High Output performance
- Available in 2700K, 3000K, 3500K, 4000K, and 5000K
- 90+ color rendering index
- Lumen output ranging from 310Lm to 385Lm per foot
- Cuttable every 1.51” with 27ft max run
- Easy installation featuring 3M VHB adhesive backing
- IP54 rating featuring nano-coating protective layer
- Dimmable (5-100%) with most ELV, TRIAC dimmers
- cULus Listed for indoor dry/damp locations
- 50,000 hours rated life / 5-year limited warranty
- JA8 compliant “High Efficiency” luminaire
- Suitable for use in closets when used in an enclosed extrusion based on NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)
Performance
Input Voltage
24V DC
CCT
2700K / 3000K / 3500K / 4000K / 5000K
Wattage
4.6W/ft
Optics (Degree)
120 degrees
CRI
90+
Cut Increment
1.51 Inch
Max Run
27ft
Rated Life (Hr)
50,000 Hours
Temperature Range
5°C (41°F) to 70°C (158°F)
Dimming
Dimmable (5-100%) with most ELV, TRIAC dimmers
Lumens
240Lm/ft
Certification
Safety Rating
cULus Listed
Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
---|---|---|---|---|---|---|---|---|---|
HTLHD-UWW-16 | 16.4 Foot | 24V DC | 2700K | 90+ | 3.65 W/ft | 310 | 27 ft | IP54 | Each |
HTLHD65-UWW-16 | 16.4 Foot | 24V DC | 2700K | 90+ | 3.65 W/ft | 295 | 27 ft | IP65 | Each |
HTLHD-WW-16 | 16.4 Foot | 24V DC | 3000K | 90+ | 3.65 W/ft | 335 | 27 ft | IP54 | Each |
HTLHD65-WW-16 | 16.4 Foot | 24V DC | 3000K | 90+ | 3.65 W/ft | 320 | 27 ft | IP65 | Each |
HTLHD-NW-16 | 16.4 Foot | 24V DC | 3500K | 90+ | 3.65 W/ft | 355 | 27 ft | IP54 | Each |
HTLHD65-NW-16 | 16.4 Foot | 24V DC | 3500K | 90+ | 3.65 W/ft | 335 | 27 ft | IP65 | Each |
HTLHD-WH-16 | 16.4 Foot | 24V DC | 4000K | 90+ | 3.65 W/ft | 385 | 27 ft | IP54 | Each |
HTLHD65-WH-16 | 16.4 Foot | 24V DC | 4000K | 90+ | 3.65 W/ft | 365 | 27 ft | IP65 | Each |
HTLHD-CW-16 | 16.4 Foot | 24V DC | 5000K | 90+ | 3.65 W/ft | 370 | 27 ft | IP54 | Each |
HTLHD65-CW-16 | 16.4 Foot | 24V DC | 5000K | 90+ | 3.65 W/ft | 350 | 27 ft | IP65 | Each |
HTLHD-UWW-100 | 100 Foot | 24V DC | 2700K | 90+ | 3.65 W/ft | 310 | 27 ft | IP54 | Each |
HTLHD-WW-100 | 100 Foot | 24V DC | 3000K | 90+ | 3.65 W/ft | 335 | 27 ft | IP54 | Each |
HTLHD-NW-100 | 100 Foot | 24V DC | 3500K | 90+ | 3.65 W/ft | 355 | 27 ft | IP54 | Each |
HTLHD-WH-100 | 100 Foot | 24V DC | 4000K | 90+ | 3.65 W/ft | 385 | 27 ft | IP54 | Each |
HTLHD-CW-100 | 100 Foot | 24V DC | 5000K | 90+ | 3.65 W/ft | 370 | 27 ft | IP54 | Each |
HTLHD-UWW-CC | Custom Cut | 24V DC | 2700K | 90+ | 3.65 W/ft | 310 | 27 ft | IP54 | Foot |
HTLHD-WW-CC | Custom Cut | 24V DC | 3000K | 90+ | 3.65 W/ft | 335 | 27 ft | IP54 | Foot |
HTLHD-NW-CC | Custom Cut | 24V DC | 3500K | 90+ | 3.65 W/ft | 355 | 27 ft | IP54 | Foot |
HTLHD-WH-CC | Custom Cut | 24V DC | 4000K | 90+ | 3.65 W/ft | 385 | 27 ft | IP54 | Foot |
HTLHD-CW-CC | Custom Cut | 24V DC | 5000K | 90+ | 3.65 W/ft | 370 | 27 ft | IP54 | Foot |
HTLHD65-WW-CC | Custom Cut | 24V DC | 3000K | 90+ | 3.65 W/ft | 320 | 27 ft | IP65 | Foot |
HTLHD65-NW-CC | Custom Cut | 24V DC | 3500K | 90+ | 3.65 W/ft | 335 | 27 ft | IP65 | Foot |
HTLHD65-WH-CC | Custom Cut | 24V DC | 4000K | 90+ | 3.65 W/ft | 365 | 27 ft | IP65 | Foot |
HTLHD65-CW-CC | Custom Cut | 24V DC | 5000K | 90+ | 3.65 W/ft | 350 | 27 ft | IP65 | Foot |
