LIGHTSTAR

A great low voltage option for your year round lighting displays, LED Lightstar provides a warm white linear lighting option that saves 75% in running costs over incandescent while significantly reducing maintenance costs. Use for tree, festival and tent, accent, decorative, architectural detail, patio, deck, and gazebo lighting.

  • 12V DC low voltage operation
  • Wide viewing angle (180º) for high visibility

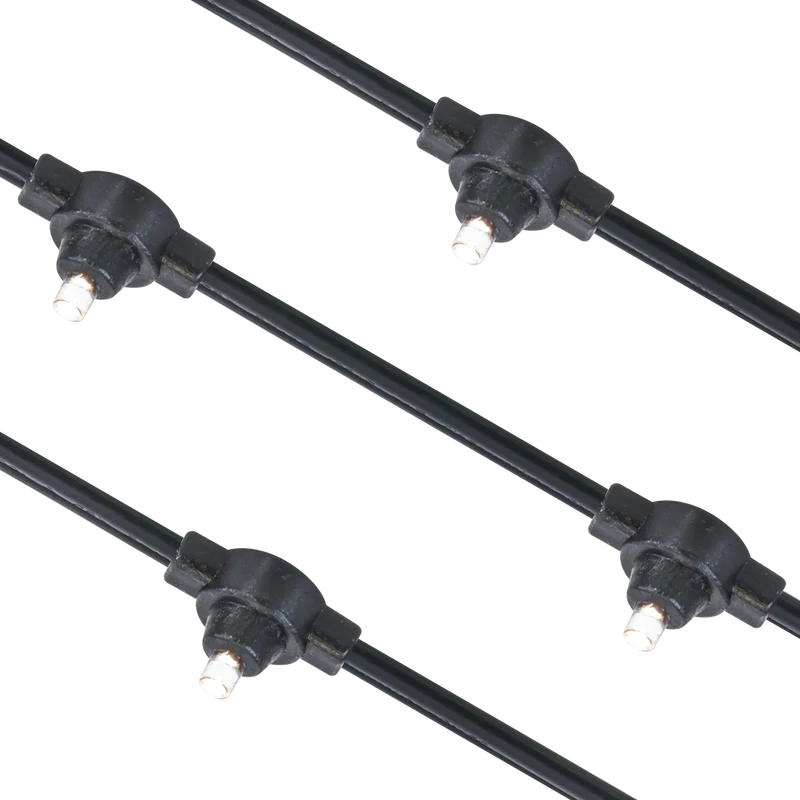

  • 5mm inverted cone lenses attached to 18AWG SPT-2 wire
  • LED's spaced every 5.9" with maximum runs up to 200ft (65W)
  • Available in 3000K color temperature with 70+ CRI
  • Long life LEDs (up to 50,000 hours)
  • Dimmable with most dimmable ELV power supplies (10-100%)
  • Low cost alternative to other LED low voltage light string products
  • Perfect solution for year-round use
SERIES
LLR
INPUT VOLTAGE
12V DC
CCT
3000K
CRI
70+
LUMENS
8Lm per LED
WATTAGE
0.16W per LED / 0.32W per ft
CUTTABLE
Field cuttable (Must be properly sealed)
IP RATING
IP65 - Wet Location
RATING
Non-Rated (Suitable for indoor and outdoor use)
RATED LIFE
50,000 Hours
LLR-6-BK-WW

3000K / 0.16W per LED / 5.9" LED Spacing / 344.5 ft Reel

LLR-CHAN-4
4ft Aluminum Mounting Channel + Shield
M-PLUG-BK-SPT2-B
Slide-on SPT2 2-Prong Plug / Black / Qty 25
