MicroLux Turtle Red

SERIES
MLUX-620NM

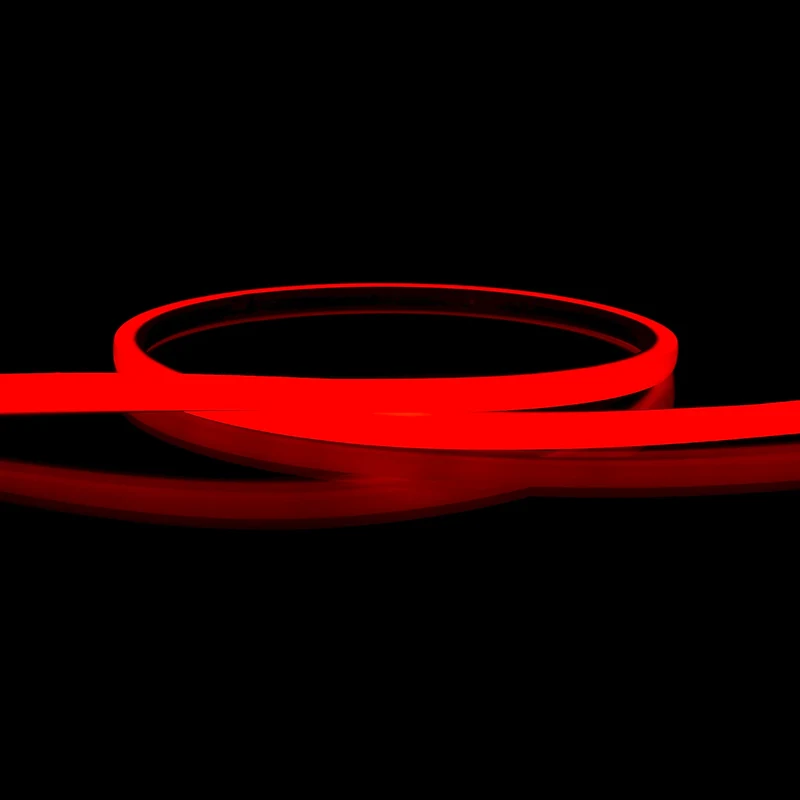

Featuring a fully encased tape light, the MicroLux 620nm turtle friendly neon provides smooth evenly diffused light that eliminates the needs for additional extrusion housings and lenses. With 620NM light emitting from three sides, this is a unique product that can be used in small spaces, or be placed on in direct view to meet the needs of dynamic lighting installations.

  • 24V DC Low voltage operation
  • Fully encased design eliminates dotting and provides diffused lighting
  • 620NM (Amber) light complies with turtle friendly requirements in coastal areas
  • Eliminates the need for additional extrusion housings and lenses
  • Cuttable every 3.94” with a maximum run of 16.4 feet
  • Features top-bend flexibility
  • Dimmable with most TRIAC/ELV/CL dimmers
  • IP65 rating (encased) for indoor & outdoor use
  • cULus Listed - 30,000 hours rated life
MicroLux Turtle Red
MicroLux Turtle Red

Performance

Input Voltage
24V DC
UV Inhibitor
Y
Wattage
2.2 W/ft
CCT
620nm
Lumens
23
Cut Increment
3.94 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
30,000 Hours
Temperature Range
-20C (-4F) to 40C (104F) degrees
Dimming
PWM 5 - 100%
Finish
White

Physical

Weight
2.4 lbs
Width
0.03 Foot
Length
16.4 Foot
Height
0.02 Foot

Certification

Safety Rating
cULus Listed
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT Wattage Lumens Max Run IP Rating UOM
MLUX-620NM 16.4 Foot 24V DC 620nm 2.2 W/ft 23 16.4 ft IP65 Each
