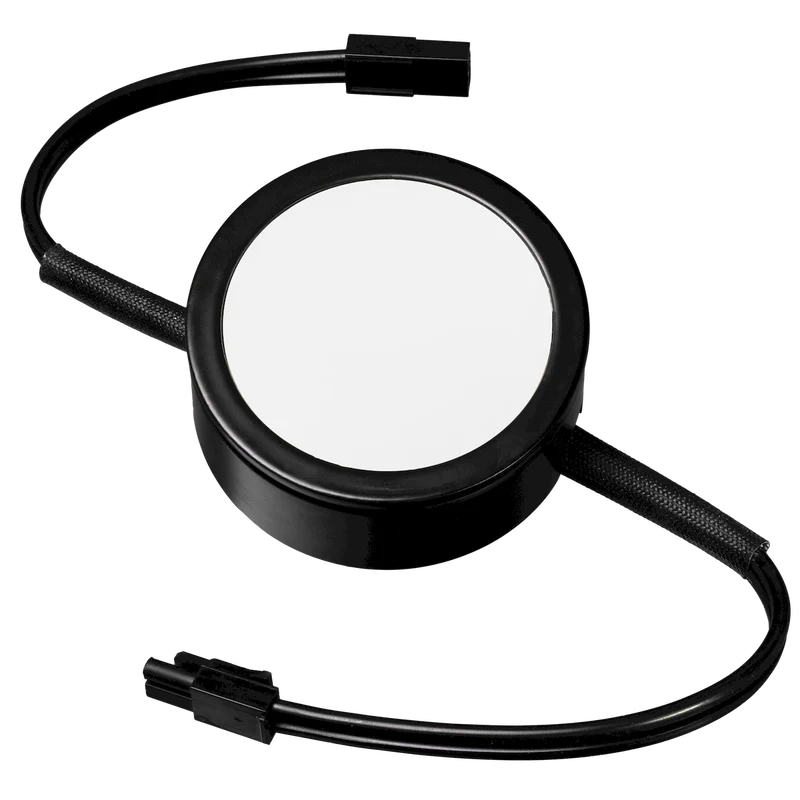

MVP 5CCT Puck Light
SERIES
C-AML-MVP-5CCT
Line-voltage input, long run lengths, and field-adjustable color temperature render the MVP 5 CCT Puck versatile and virtually unlimited in a wide range of applications – task areas, display shelving, back bars, built-ins, etc. Minimalism in form factor and surface or recessed mount allows for more obscurity where necessary. With 12” and 24” linking cables, this plug-and-play solution to task lighting provides the contractor and customer the ultimate tool for illuminating important tasks or treasured articles.
- Available in field-switchable 5CCT (2700K | 3000K | 3500K | 4000K | 5000K)
- High color rendering index of 90+ CRI
- 120V AC input
- Low power consumption at 4W per puck
- Surface mount low profile and recessed mount
- 35,000 hour rated life
- cETLus listed for dry locations
Performance
Input Voltage
120V AC
CCT
5CCT (2700K/3000K/3500K/4000K/5000K)
Finish
White / Black
Wattage
4.3W per puck
Optics (Degree)
120 Degrees
CRI
90+
Max Run
20 Units
Rated Life (Hr)
35,000 Hours
Dimming
Dimmable (10-100%) with most ELV, TRIAC dimmers
Lumens
Up to 230Lm
Certification
Safety Rating
cETLus Listed
Location Rating
Dry
Indoor
Y
Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | UOM |
---|---|---|---|---|---|---|---|---|
MVP-1-5CCT-WH | 2.875 Inch | 120V AC | 5CCT | 90+ | 4 W | 230 | 20 units | Each |
MVP-1-5CCT-BK | 2.875 Inch | 120V AC | 5CCT | 90+ | 4 W | 230 | 20 units | Each |
MVP-1-5CCT-WH-B | 2.875 Inch | 120V AC | 5CCT | 90+ | 4 W | 230 | 20 units | Each |
MVP-1-5CCT-BK-B | 2.875 Inch | 120V AC | 5CCT | 90+ | 4 W | 230 | 20 units | Each |
Catalog Cut Sheets
Specification Sheets
Instruction Manuals
ACCESSORIES
-
MVP 120V Puck Light 6in Jumper Cable in Black120V AC • 86W
-
MVP 120V Puck Light 6in Jumper Cable in White120V AC • 86W
