Neonflex Pro Dual

SERIES
C-AML-NFPROD

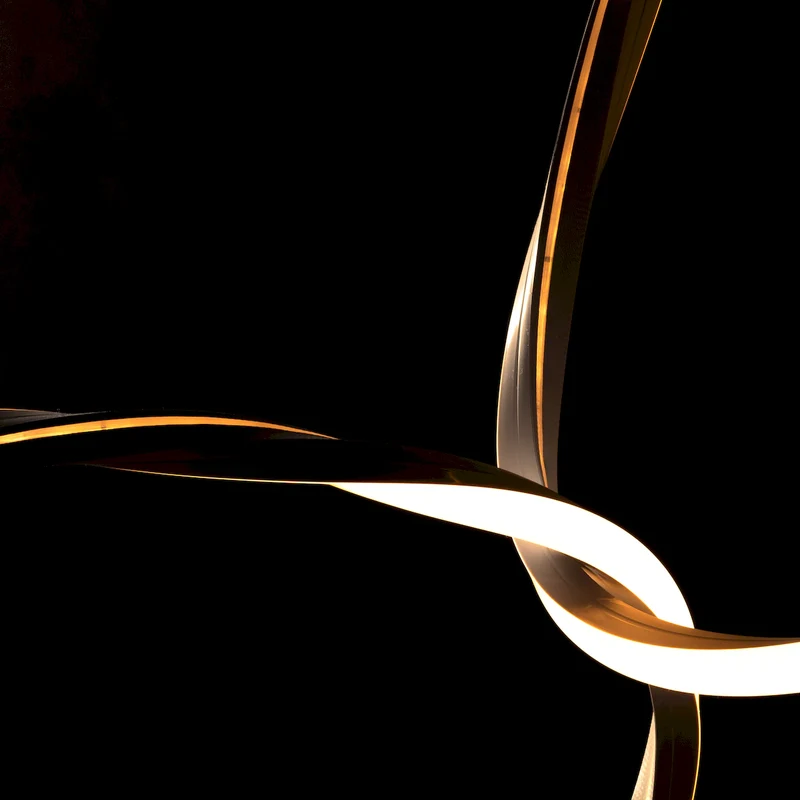

Neonflex Pro is a next-generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. This version of the Neonflex Pro features dual-bend technology that allows for top and bottom "vertical" bending, as well as left and right "lateral" bending. UV, flame, and saltwater resistant, Neonflex Pro is not only durable, but easy to install, making it a versatile option for any interior or exterior application.

  • Dual-bend LED neon, bends in vertical and lateral orientation
  • Available in 3000K CCT
  • 90+ color rendering index
  • Lumen output performance up to 223Lm per foot
  • 16.4ft max run
  • UV, flame, and saltwater resistant
  • IP67 rating featuring sealed silicone jacketing
  • Dimmable (5-100%) with most ELV and TRIAC dimmers
  • cULus Listed for indoor and outdoor wet locations
  • 50,000 hours rated life
Neonflex Pro Dual
Neonflex Pro Dual Neonflex Pro Dual

Performance

Output Voltage
24V DC
CCT
3000K
Wattage
3.05W / ft
Cut Increment
1.97in
Max Run
16.4ft
Rated Life (Hr)
50,000
Temperature Range
-25°C (-13°F) to 45°C (113°F)
Lumens
223Lm/ft
Item Number Length CCT UOM
NFPROD-30-16 16.4 Foot 3000K Each
NFPROD-30-CC Custom Cut 3000K Foot
