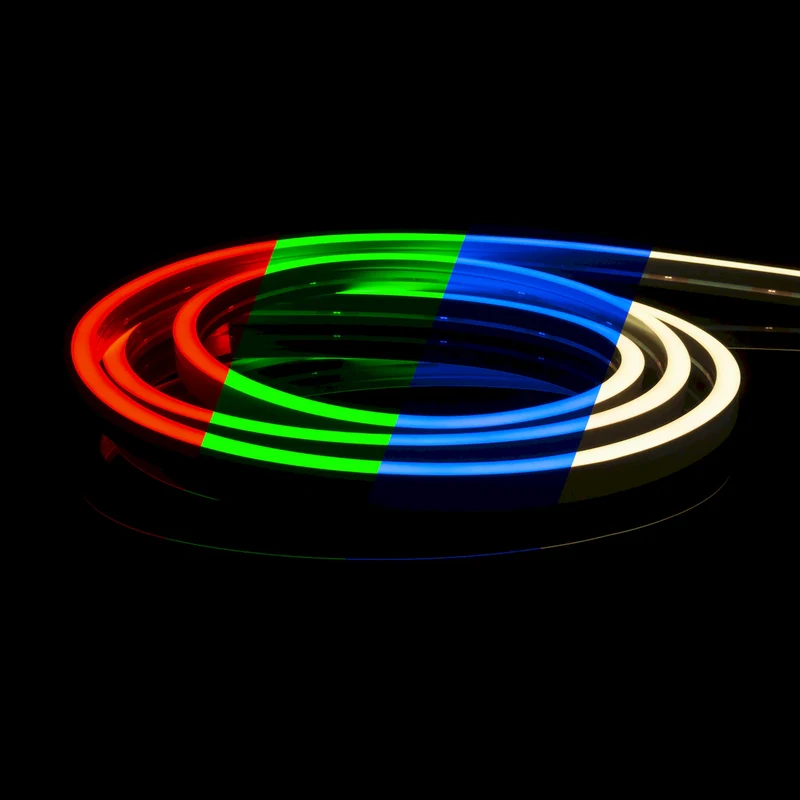

NeonFlex Pro L Side Bend RGBW
SERIES
C-AML-NFPROL-RGBW
NeonFlex Pro is the next generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. UV, flame, and saltwater resistant, NeonFlex Pro is not only durable, but easy to install. Featuring multiple power feed options, in-field customization makes for a versatile option for any interior or exterior application.
- RGBW lateral (side bend) LED neon
- Lumen output performance up to 97Lm per foot
- Consumes up to 4.57W per foot
- Cuttable every 2.46” with 16.4ft max run
- Quick install field connections: Front, Side, and Bottom feeds
- UV, flame, and saltwater resistant
- IP67 rating featuring sealed silicone jacketing
- Dimmable (5-100%) with most DMX controls
- cULus Listed for indoor and outdoor wet locations
- 54,000 hours rated life
Performance
Input Voltage
24V DC
CCT
RGBW (3000K)
Finish
White
Wattage
4.57W/ft
Optics (Degree)
120 Degrees
Cut Increment
2.46 Inch
Max Run
16.4ft
Rated Life (Hr)
54,000 Hours
Temperature Range
-25°C (-13°F) to 45°C (113°F)
Dimming
Dimmable (0-100%) Via DMX or Smart Controls RGBW)
Lumens
Up to 97Lm/ft
Certification
Safety Rating
cULus Listed
IP Rating
IP67
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|
| NFPROL-RGBW-CC | Custom Cut | 24V DC | RGBW | 4.57 W/ft | 97 | 16.4 ft | IP67 | Foot |
