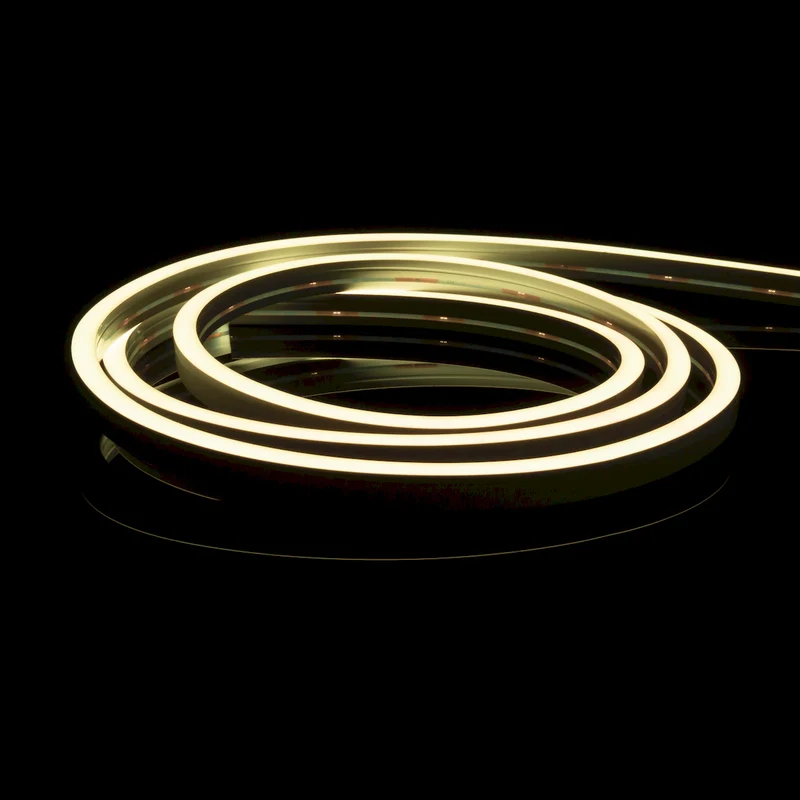

NeonFlex Pro L Side Bend Static White

SERIES

C-AML-NFPROL-SW

NeonFlex Pro is the next generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. UV, flame, and saltwater resistant, NeonFlex Pro is not only durable, but easy to install. Featuring multiple power feed options, in-field customization makes for a versatile option for any interior or exterior application.

Static white lateral (side bend) LED neon
Available in 2700K, 3000K, and 4000K
90+ color rendering index
Lumen output performance up to 103Lm per foot
Cuttable every 1.97” with 55.7ft max run
UV, flame, and saltwater resistant
IP67 rating featuring sealed silicone jacketing
Dimmable (5-100%) with most ELV and TRIAC dimmers
cULus Listed for indoor and outdoor wet locations
54,000 hours rated life

Specifications

Performance

Input Voltage

24V DC

CCT

2700K / 3000K / 4000K

Finish

White

Wattage

3.05W/ft

Optics (Degree)

120 Degrees

Cut Increment

1.97 Inch

Max Run

55.7ft

Rated Life (Hr)

54,000 Hours

Temperature Range

-25°C (-13°F) to 45°C (113°F)

Dimming

Dimmable (5-100%) with most ELV, TRIAC dimmers

Lumens

Up to 103Lm/ft

Certification

Safety Rating

cULus Listed

IP Rating

IP67

Location Rating

Wet

Indoor

Outdoor

Ordering Information

Item Number	Length	Input Voltage	CCT	CRI	Wattage	Lumens	Max Run	IP Rating	UOM
NFPROL-27-CC	Custom Cut	24V DC	2700K	90+	3.05 W/ft	91	55.7 ft	IP67	Foot
NFPROL-30-98	98 Foot	24V DC	3000K	90+	3.05 W/ft	94	55.7 ft	IP67	Each
NFPROL-30-CC	Custom Cut	24V DC	3000K	90+	3.05 W/ft	94	55.7 ft	IP67	Foot
NFPROL-40-CC	Custom Cut	24V DC	4000K	90+	3.05 W/ft	103	55.7 ft	IP67	Foot
