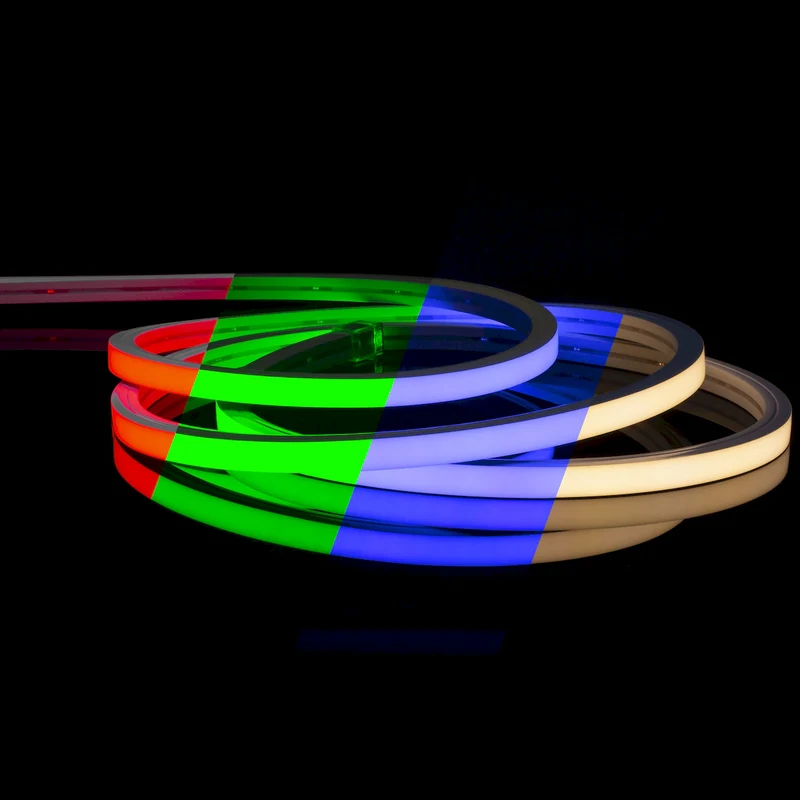

NeonFlex Pro V Top Bend RGBW
SERIES
C-AML-NFPROV-RGBW
NeonFlex Pro is the next generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. UV, flame, and saltwater resistant, NeonFlex Pro is not only durable, but easy to install. Featuring multiple power feed options, in-field customization makes for a versatile option for any interior or exterior application.
- RGBW vertical (top bend) LED neon
- Lumen output performance up to 134Lm per foot
- Consumes up to 4.57W per foot
- Cuttable every 2.46” with 16.4ft max run
- UV, flame, and saltwater resistant
- IP67 rating featuring sealed silicone jacketing
- Dimmable (0-100%) with most DMX controls
- cULus Listed for indoor and outdoor wet locations
- 54,000 hours rated life
- This item is a “Custom” item. Please allow 2-4 weeks for order processing.
- Special Orders, Custom Orders, and NCNR (Non Cancelable Non Returnable)Orders are non cancellable and non returnable after the orders are confirmed and accepted for processing.
Performance
Input Voltage
24V DC
CCT
RGBW (3000K)
Finish
White
Wattage
4.57W/ft
Optics (Degree)
120 Degrees
Cut Increment
2.46 Inch
Max Run
16.4ft
Rated Life (Hr)
54,000 Hours
Temperature Range
-25°C (-13°F) to 45°C (113°F)
Dimming
Dimmable (0-100%) Via DMX or Smart Controls RGBW)
Lumens
Up to 134Lm/ft
Certification
Safety Rating
cULus Listed
IP Rating
IP67
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|
| NFPROV-RGBW-CC | Custom Cut | 24V DC | RGBW | 4.57 W/ft | 134 | 16.4 ft | IP67 | Foot |
