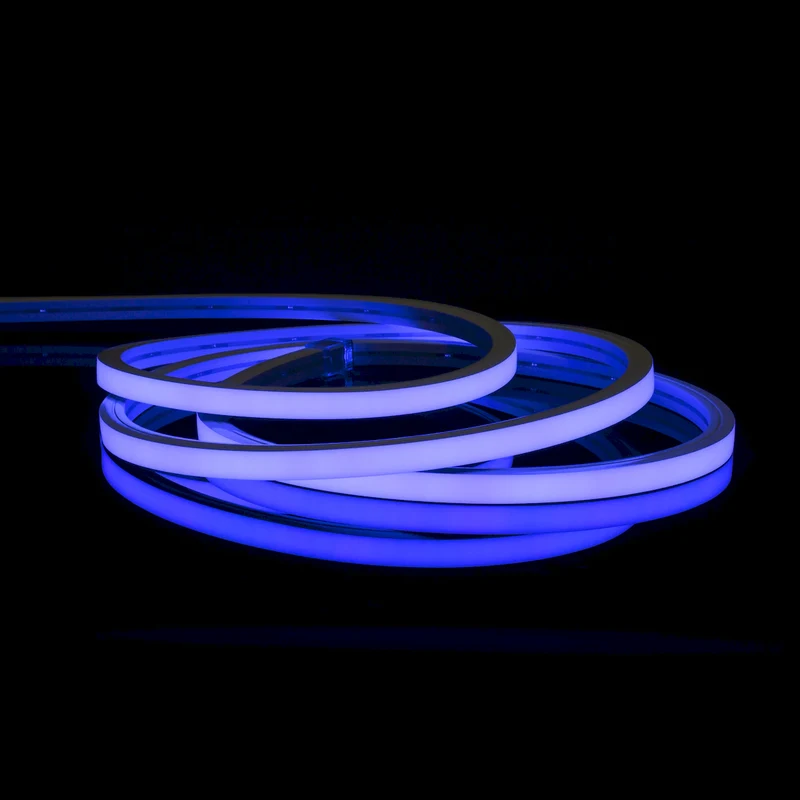

NeonFlex Pro V Top Bend Single Color
SERIES
C-AML-NFPROV-SC
Neonflex Pro is the next generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. UV, flame, and saltwater resistant, Neonflex Pro is not only durable, but easy to install. Featuring multiple power feed options, in-field customization makes for a versatile option for any interior or exterior application.
- Single color vertical (top bend) LED neon
- Available in Red, Green, and Blue
- Lumen output performance up to 149Lm per foot
- Cuttable every 1.97” with 55.7ft max run
- UV, flame, and saltwater resistant
- IP67 rating featuring sealed silicone jacketing
- Dimmable (5-100%) with most ELV and TRIAC dimmers
- cULus Listed for indoor and outdoor wet locations
- 54,000 hours rated life
- This item is a “Custom” item. Please allow 2-4 weeks for order processing.
- Special Orders, Custom Orders, and NCNR (Non Cancelable Non Returnable)Orders are non cancellable and non returnable after the orders are confirmed and accepted for processing.
Performance
Input Voltage
24V DC
CCT
Red / Green / Blue
Finish
White
Wattage
3.05W/ft
Optics (Degree)
120 Degrees
Cut Increment
1.97 Inch
Max Run
55.7ft
Rated Life (Hr)
54,000 Hours
Temperature Range
-25°C (-13°F) to 45°C (113°F)
Dimming
Dimmable (5-100%) with most ELV, TRIAC dimmers
Lumens
Up to 149Lm/ft
Certification
Safety Rating
cULus Listed
IP Rating
IP67
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|
| NFPROV-RE-CC | Custom Cut | 24V DC | Red | 3.05 W/ft | 60 | 55.7 ft | IP67 | Foot |
| NFPROV-GR-CC | Custom Cut | 24V DC | Green | 3.05 W/ft | 149 | 55.7 ft | IP67 | Foot |
| NFPROV-BL-CC | Custom Cut | 24V DC | Blue | 3.05 W/ft | 30 | 55.7 ft | IP67 | Foot |
