Omni Puck Light

SERIES
C-AML-OMNI

Designed for recessed or surface mounting, the 12V low voltage Omni puck is perfect for adding accent, under-cabinet, in-cabinet, and other small niche area lighting. Featuring 2700K color temperature with 90+CRI and up to 150 lumen output per puck, the Omni is available in two designer finishes (White or Black) perfect for any application.

  • 2700K color temperature
  • High color rendering (90+ CRI)
  • Low voltage - 12V DC operation

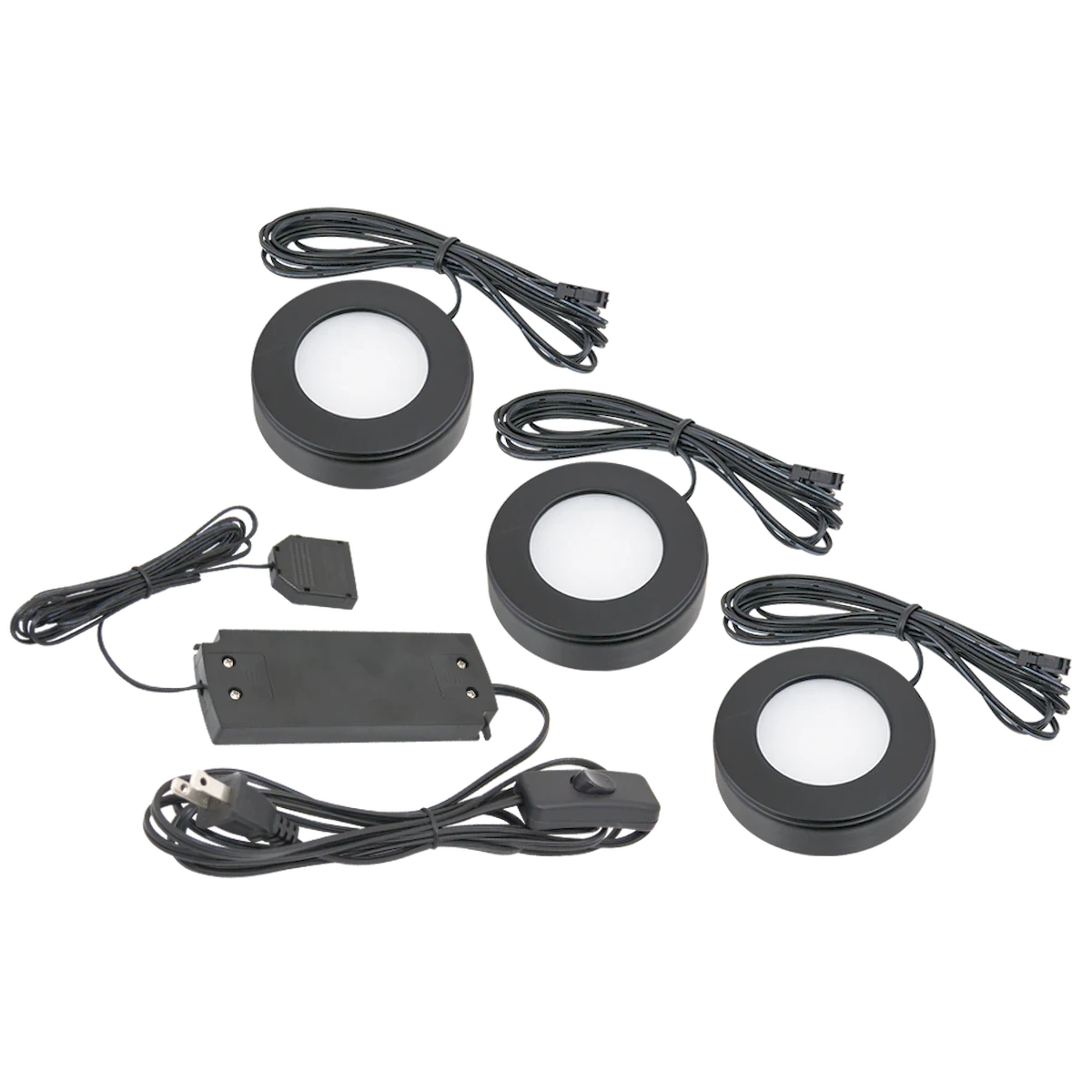

  • Available in three puck kits or single pucks
  • Recessed or surface mount design
  • Low profile design - less than 3/4” high
  • Dimmable with most TRIAC, CL, and ELV dimmers
  • Direct hardwire or plug-in installation
  • Rated for dry locations
  • 30,000 hours rated life
Omni Puck Light
Omni Puck Light Omni Puck Light

Performance

Input Voltage
12V DC
CCT
2700K
Finish
White / Black
Wattage
3.2W
Optics (Degree)
120 Degrees
CRI
90+
Max Run
Dependant on capacity of power supply
Rated Life (Hr)
30,000 Hours
Dimming
Dimmable (15-100%) with most ELV, TRIAC dimmers
Lumens
Up to 150Lm
Item Number Length Input Voltage CCT CRI Wattage Lumens UOM

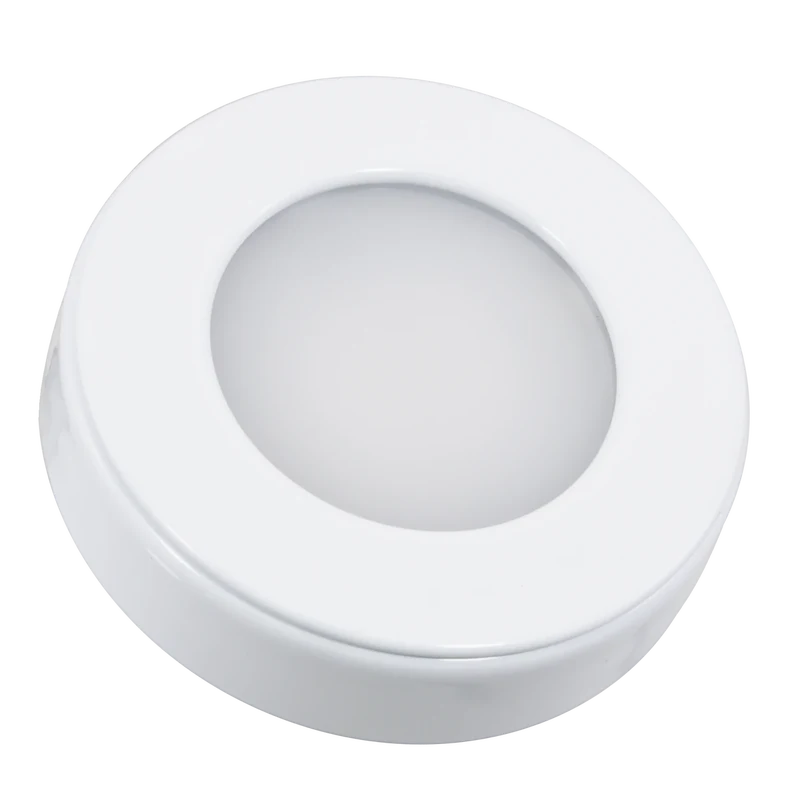

OMNI-1-WH 2.625 Inch 12V DC 2700K 90+ 3.2 W 150 Each
OMNI-3KIT-WH 2.625 Inch 12V DC 2700K 90+ 3.2 W 150 Each
OMNI-1-BK 2.625 Inch 12V DC 2700K 90+ 3.2 W 140 Each
OMNI-3KIT-BK 2.625 Inch 12V DC 2700K 90+ 3.2 W 140 Each
