Plug-in Driver 12 Watts 12V DC

SERIES
PS-12-12VPI-T

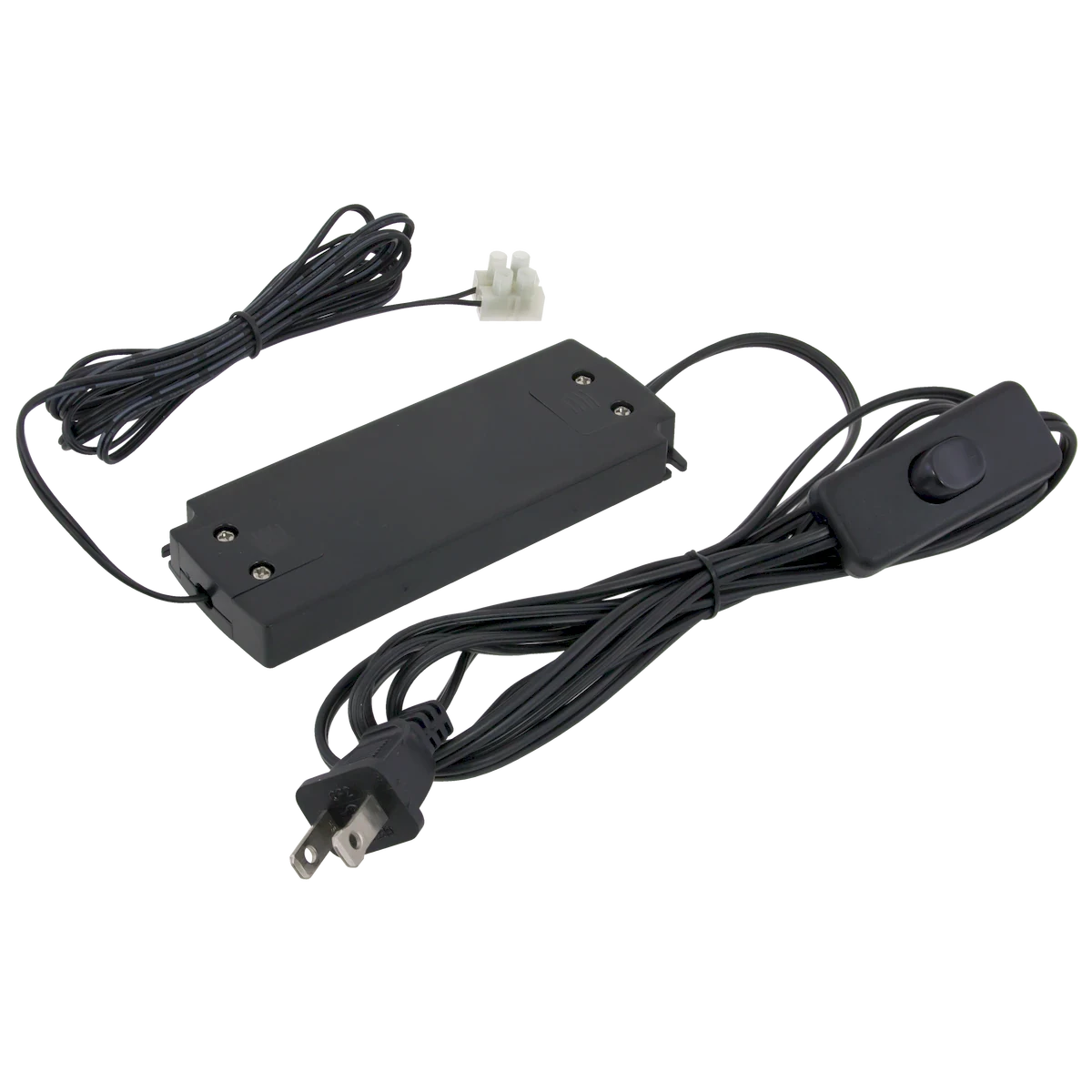

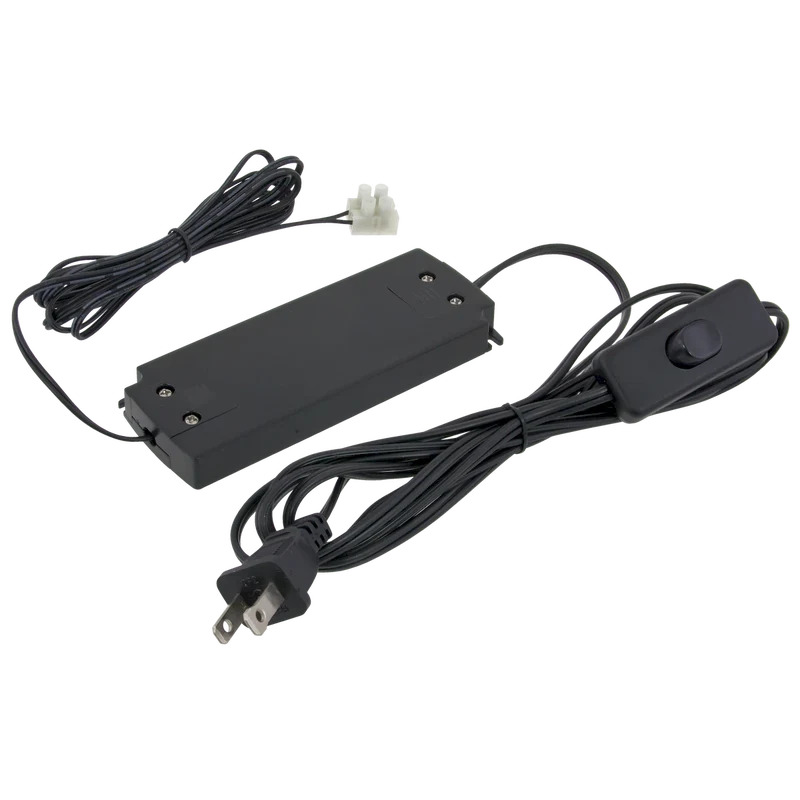

This low profile dimmable plug-in driver has wire cover strain reliefs at both primary and secondary sides. It includes an attached terminal block to quickly connect low voltage lead wires. For dimming applications, a 4W minimum load must be met.

  • Class 2 12W Constant voltage dimmable plugin driver
  • Features terminal block for easy wiring and inline rocker switch
  • 6ft 18AWG power cord with 2-prong plug
  • 6ft lead wire with attached terminal block
  • cETLus Recognized Component (dry locations)
Plug-in Driver 12 Watts 12V DC
Plug-in Driver 12 Watts 12V DC

Performance

Input Voltage
100-120V AC
Output Voltage
12V DC
Input Frequency
50-60Hz
Wattage
12 W
CCT
3000K
Minimum Load
4 W
Dimming
TRIAC

Physical

Weight
0.50 lbs
Width
2 Inch
Length
5.25 Inch
Height
0.68 Inch

Certification

Safety Rating
cETLus Listed
Location Rating
Dry
Indoor
Y
Item Number Length Input Voltage CCT Wattage UOM
PS-12-12VPI-T 5.25 Inch 100-120V AC 3000K 12 W Each
