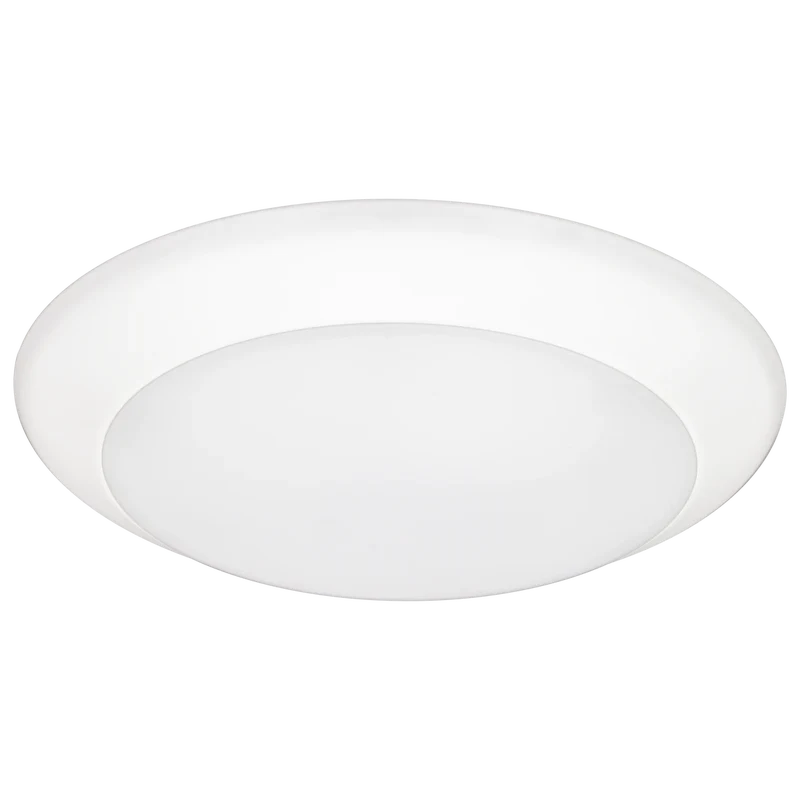

Quick Disc 6in
SERIES
C-AML-QD6
Multi-purpose surface mount disc for use with standard and pancake junction boxes. The sleek, low-profile design is available in 3000K energy-saving dimmable LED light, driver on-board, and polycarbonate lens to diffuse and soften light. Easy mounting style makes installation quick and hassle-free.
- Available in 3000K and 4000K color temperatures with 90+ CRI
- Low profile design, as little as 1” high
- 1050 lumen output performance
- Removable lens for quick and easy installation
- Polycarbonate lens for diffused soft light
- ENERGY STAR certified
- cETLus Listed for wet locations
- 50,000 hours rated life
Performance
CCT
3000K / 4000K
Finish
White / Dark Bronze
Wattage
15W
Optics (Degree)
120 degrees
CRI
90+
Rated Life (Hr)
35,000 Hours
Temperature Range
-10°C (-14°F) to 50°C (122°F)
Dimming
Dimmable (10-100%) with most ELV, TRIAC dimmers
Lumens
1050Lm
Certification
Safety Rating
cETLus Listed
Location Rating
Wet
Indoor
Y
FCC
Y
| Item Number | Input Voltage | CCT | CRI | Wattage | Lumens | UOM |
|---|---|---|---|---|---|---|
| QD6-30-WH | 120V AC | 3000K | 90+ | 15 W | 1050 | Each |
| QD6-40-WH | 120V AC | 4000K | 90+ | 15 W | 1050 | Each |
