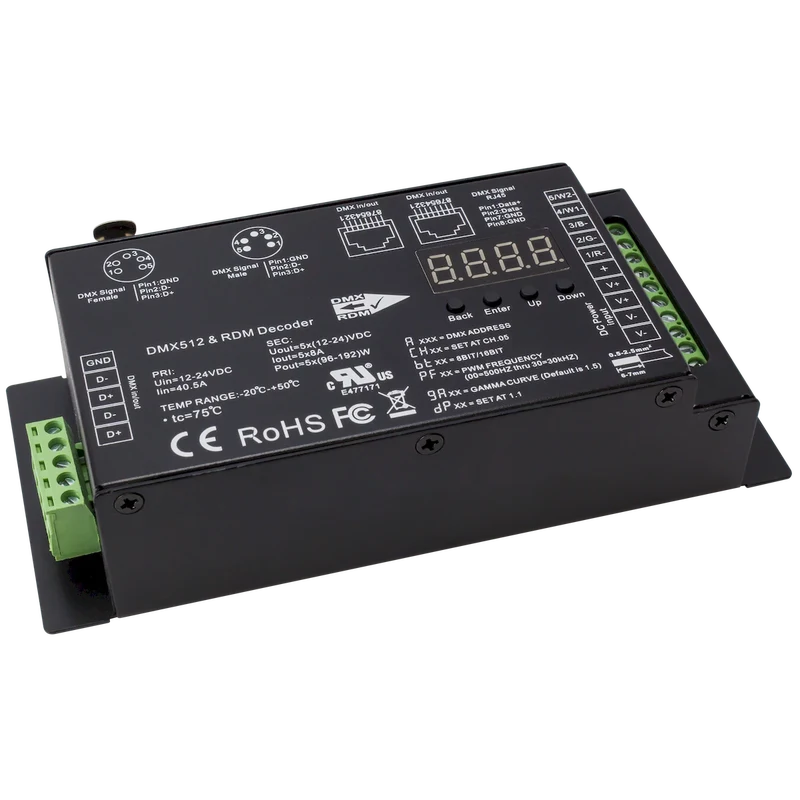

DMX Decoder: 5-Channel w/RJ45

SERIES
REC-DMX-RJ45A-5CH

The DMX 5-Channel Decoder translates DMX signals into the PWM control signal used by RGB LED lights, and allows for flawless integration into new and existing DMX installations. Using the 5-channel DMX receiver, you are no longer limited to just DMX fixtures, seamlessly integrate color changing neon or tape light with ease for temporary or permanent applications.

  • 5-channel capable output (8A per channel max)
  • Compatible with single color, tunable, and RGB based neon or tape light
  • Features easy to use RJ45, XLR5, or direct wire DMX inputs and outputs
  • Link multiple receivers for larger installs required separate addresses
  • 8 bit or 16 bit PWM output resolution ratio
  • Requires 12-24V DC input and DMX controller for operation
DMX Decoder: 5-Channel w/RJ45
DMX Decoder: 5-Channel w/RJ45

Performance

Input Voltage
12-24V DC
Output Voltage
12-24V DC
Input Frequency
DMX
Output Frequency
RGBCW
Wattage
192 W
Temperature Range
-20C to 50C degrees
Dimming
DMX
Finish
Black

Physical

Weight
0.9 lbs
Width
2.9 Inch
Length
6.5 Inch
Height
1.468 Inch

Certification

Safety Rating
cURus Recognized
Location Rating
Dry
Indoor
Y
ROHS
Y
FCC
Y
Item Number Length Input Voltage Wattage UOM
REC-DMX-RJ45A-5CH 6.5 Inch 12-24V DC 192 W Each
