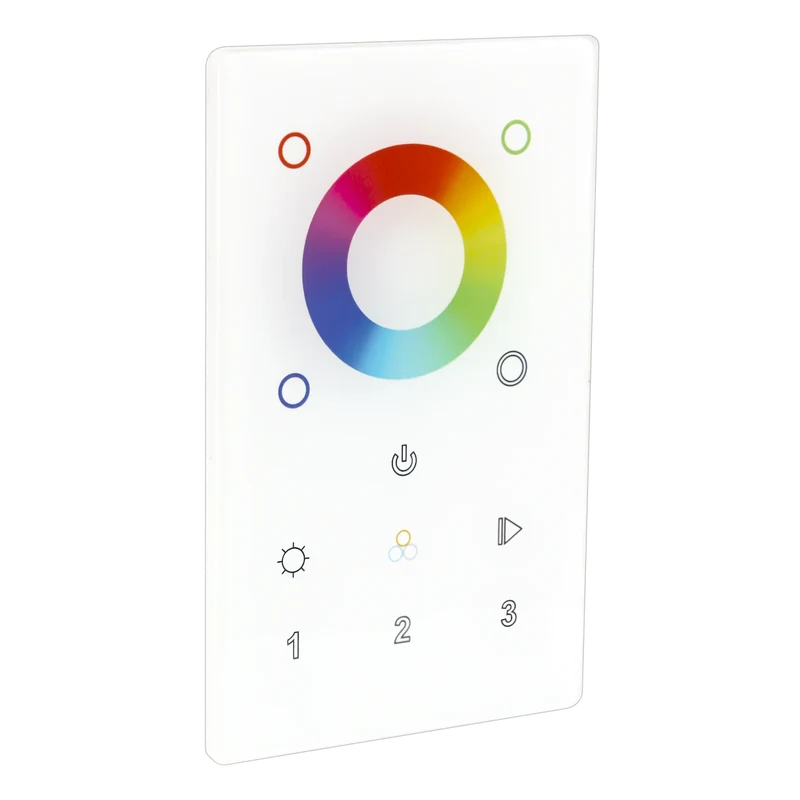

3-Zone DMX Wall Control

SERIES
DMX-3Z

When reliable signals are a must, the RGBW wall plate controllers are a great fit. Clean touch-sensitive wall plates blend to their surroundings while keeping controls simple and easy. With two options, choose between multiple scenes or zones dependent on the application. With easy to use functions such as on/off, scene or zone selection, as well as built-in auto presets, the RGBW DMX is great economical choice control.

  • Touch-sensitive configuration & operation
  • Includes 4 color (Red, Green, Blue, White) as well as 10 auto presets
  • Options available for single zone or multiple zone control needs
  • Includes 3 built-in RGB dynamic White blending modes
  • Features full range dimming capabilities (1-100%)
  • Requires 12-24V DC input and DMX receiver
3-Zone DMX Wall Control
3-Zone DMX Wall Control 3-Zone DMX Wall Control 3-Zone DMX Wall Control

Performance

Input Voltage
12-24V DC
Input Frequency
DMX
Output Frequency
DMX
Wattage
180 W
Temperature Range
0C to 40C degrees
Dimming
DMX 1 - 100%
Finish
White
Control
DMX

Physical

Weight
0.5 lbs
Width
1.15 Inch
Length
2.96 Inch
Height
4.75 Inch

Certification

Location Rating
Dry
Indoor
Y
ROHS
Y
FCC
Y
Item Number Length Input Voltage Wattage UOM
DMX-3Z 2.96 Inch 12-24V DC 180 W Each
