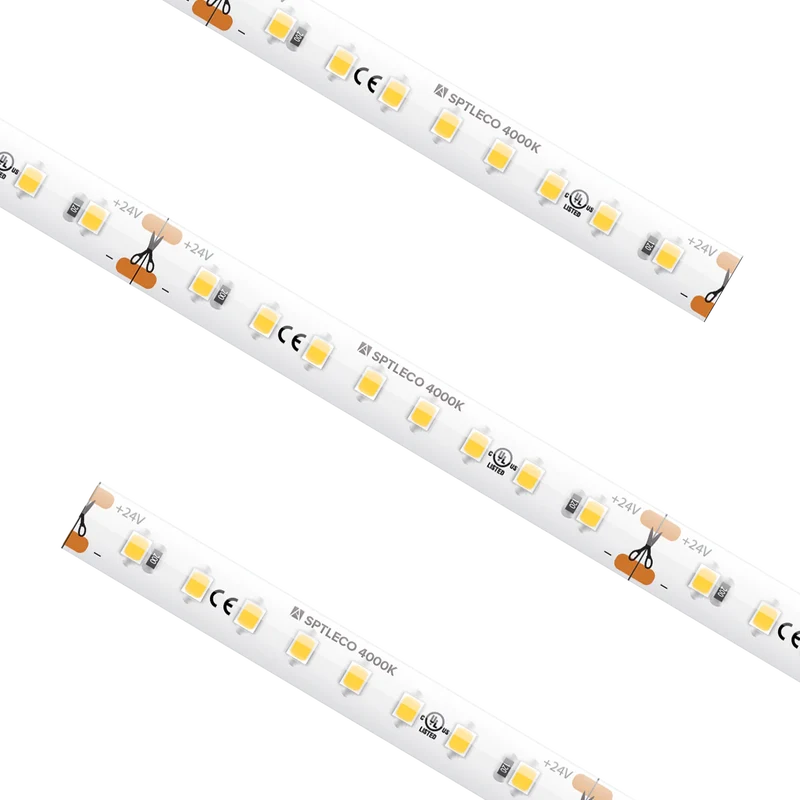

Trulux Spec Grade Eco Tape Light Static White

SERIES

C-AML-SPTLECO

A new and improved version of specification grade tape light, Spec Eco tape light offers up to 640 lumens per foot while only consuming 5.8W per foot. The superior light output is best used in large open spaces in both residential and commercial applications and is available in multiple color temps with maximum runs lengths up to 16.4 feet.

One of the brightest lumen output per foot tape light available
Lumen output ranging from 556Lm to 640Lm per foot
Available in 2700K, 3000K, 3500K, and 4000K
96+ color rendering index
Cuttable every 2.8” with 16.4ft max run
Easy installation featuring 3M VHB adhesive backing
IP54 rating featuring nano-coating protective layer
Dimmable (5-100%) with most ELV, TRIAC dimmers
cULus Listed for indoor dry/damp locations
50,000 hours rated life / 5-year limited warranty
JA8 Compliant

Trulux Spec Grade Eco Tape Light Static White

Specifications

Performance

Input Voltage

24V DC

CCT

2700K / 3000K / 3500K / 4000K

Wattage

5.8W/ft

Optics (Degree)

120 degrees

CRI

90+

Cut Increment

2.8 Foot

Max Run

16.4ft

Rated Life (Hr)

50,000 Hours

Temperature Range

5°C (41°F) to 70°C (158°F)

Dimming

Dimmable (5-100%) with most ELV, TRIAC dimmers

Lumens

640Lm/ft

Certification

Safety Rating

cULus Listed

Ordering Information

Item Number	Length	Input Voltage	CCT	CRI	Wattage	Lumens	Max Run	IP Rating	UOM
SPTLECO-UWW	16.4 Foot	24V DC	2700K	96+	5.8 W/ft	556	16.4 ft	IP54	Each
SPTLECO-WW	16.4 Foot	24V DC	3000K	96+	5.8 W/ft	585	16.4 ft	IP54	Each
SPTLECO-NW	16.4 Foot	24V DC	3500K	96+	5.8 W/ft	615	16.4 ft	IP54	Each
SPTLECO-WH	16.4 Foot	24V DC	4000K	96+	5.8 W/ft	640	16.4 ft	IP54	Each
SPTLECO-UWW-CC	Custom Cut	24V DC	2700K	96+	5.8 W/ft	556	16.4 ft	IP54	Foot
SPTLECO-WW-CC	Custom Cut	24V DC	3000K	96+	5.8 W/ft	585	16.4 ft	IP54	Foot
SPTLECO-NW-CC	Custom Cut	24V DC	3500K	96+	5.8 W/ft	615	16.4 ft	IP54	Foot
SPTLECO-WH-CC	Custom Cut	24V DC	4000K	96+	5.8 W/ft	640	16.4 ft	IP54	Foot
