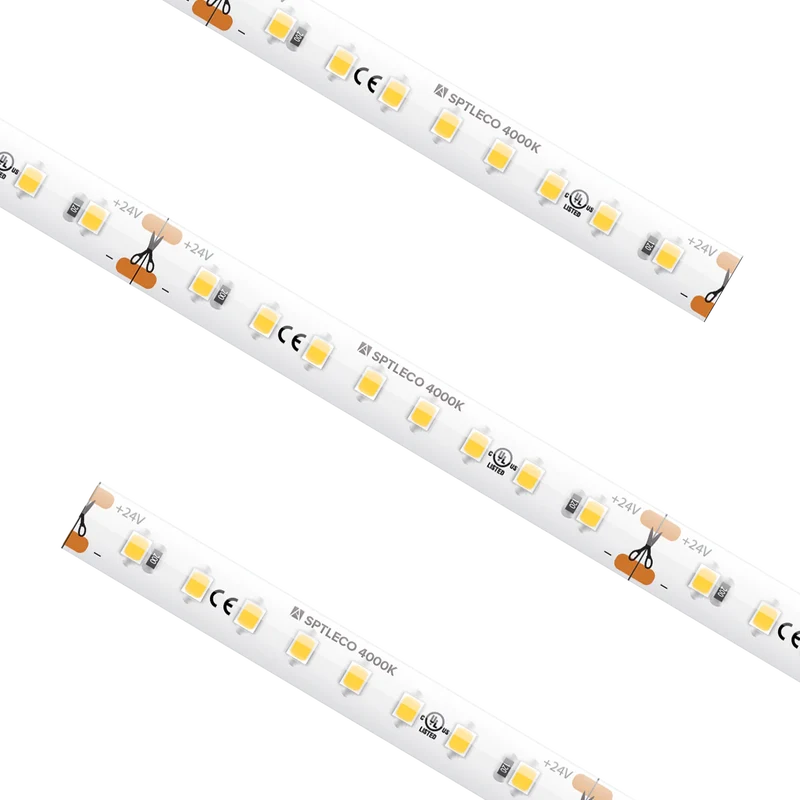

SPEC ECO

A new and improved version of specification grade tape light,
Spec Eco tape light offers up to 640 lumens per foot while only
consuming 5.8W per foot. The superior light output is best used in
large open spaces in both residential and commercial applications
and is available in multiple color temps with maximum runs lengths
up to 16.4 feet.

  • One of the brightest lumen output per foot tape light available
  • Lumen output ranging from 556Lm to 640Lm per foot
  • Available in 2700K, 3000K, 3500K, and 4000K
  • 96+ color rendering index
  • Cuttable every 2.8” with 16.4ft max run
  • Easy installation featuring 3M VHB adhesive backing
  • IP54 rating featuring nano-coating protective layer
  • Dimmable (5-100%) with most ELV, TRIAC dimmers
  • cULus Listed for indoor dry/damp locations
  • 50,000 hours rated life / 5-year limited warranty
SERIES
SPTLECO
Input Voltage
24V DC
CCT
2700K / 3000K / 3500K / 4000K
CRI
80+
Lumens
Up to 640Lm per ft
Wattage
5.8W per ft
Cut Increments
Every 2.8"
Width
10mm
Max Run
16.4ft
IP Rating
IP54 - Damp Location
Ratings
cULus Listed
Rated Life
30,000 Hrs
SPTLECO-UWW

2700K / 24V DC / 5.8W per ft / 556Lm per ft / 16.4ft Reel

SPTLECO-WW

3000K / 24V DC / 5.8W per ft / 585Lm per ft / 16.4ft Reel

SPTLECO-NW

3500K / 24V DC / 5.8W per ft / 615Lm per ft / 16.4ft Reel

SPTLECO-WH

4000K / 24V DC / 5.8W per ft / 640Lm per ft / 16.4ft Reel

SPTLECO-UWW-CC

2700K / 24V DC / 75.8W per ft / 556Lm per ft / Custom Cut

SPTLECO-WW-CC

3000K / 24V DC / 5.8W per ft / 585Lm per ft / Custom Cut

SPTLECO-NW-CC

3500K / 24V DC / 5.8W per ft / 615Lm per ft / Custom Cut

SPTLECO-WH-CC

4000K / 24V DC / 5.8W per ft / 640Lm per ft / Custom Cut

TL-CONKIT
Trulink 4-in-1 Connection Kit
TL-BLKS
Trulink 4-in-1 connector Block (qty 10)
TL-2PWR-HD
6" HD Power Feed
TL-2SPL-HD
HD Tape to Tape Splice Connector
TL-2JUMP6-HD
6" HD Linking Cable
TL-2JUMP24-HD
24" HD Linking Cable
WIRE-15-2PIN
15ft (20/2) Wire Spool
LVSB-2PIN
2pin In-line Terminal Block
RCWY-PVC-1M
1m Plastic Wire Cover Raceway
INLINE-SC-CTRL
Simple Select In-line Controller (Single Color)

ORDERING INFORMATION

PART NUMBERLENGTHVOLTAGECCTCRIWATTAGELUMENSCUTTABLEMAX RUNIP RATING
SPTLECO-UWW16.4ft24V DC2700K96+5.8W/ft556Lm/ft2.8"16.4ftIP54
SPTLECO-WW16.4ft24V DC3000K96+5.8W/ft585Lm/ft2.8"16.4ftIP54
SPTLECO-NW16.4ft24V DC3500K96+5.8W/ft615Lm/ft2.8"16.4ftIP54
SPTLECO-WH16.4ft24V DC4000K96+5.8W/ft640Lm/ft2.8"16.4ftIP54
SPTLECO-UWWCustom Cut24V DC2700K96+5.8W/ft556Lm/ft2.8"16.4ftIP54
SPTLECO-WWCustom Cut24V DC3000K96+5.8W/ft585Lm/ft2.8"16.4ftIP54
SPTLECO-NWCustom Cut24V DC3500K96+5.8W/ft615Lm/ft2.8"16.4ftIP54
SPTLECO-WHCustom Cut24V DC4000K96+5.8W/ft640Lm/ft2.8"16.4ftIP54
