SPEC ULTRA

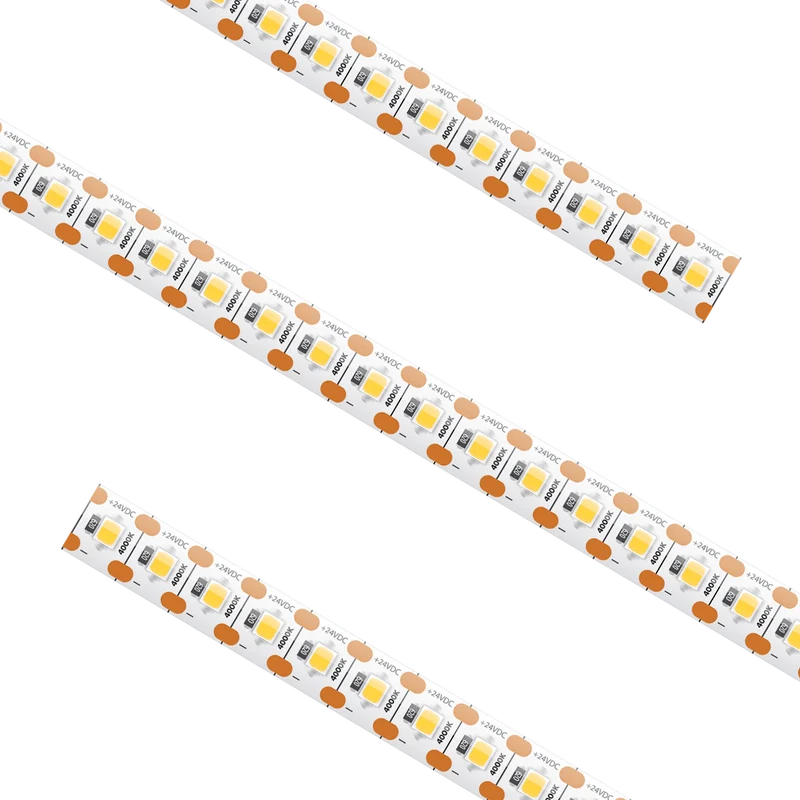

You asked. We listened. The all new Spec Ultra series features the same great quality of our traditional spec grade tape light, but we gave it a little boost. Featuring up to 650 lumens per foot and 90+ CRI performance, Spec Ultra features a "One LED - One Cut" design that allows for ultra precise cut increments for the more complex linear lighting applications.

  • Ultra bright, ultra precise - One LED, One Cut tape light option
  • Lumen output ranging from 550Lm to 650Lm per foot
  • Cuttable every 0.33” with 13.1ft max run
  • Available in 2700K, 3000K, 3500K, and 4000K
  • 90+ color rendering index
  • Easy installation featuring 3M VHB adhesive backing
  • IP54 rating featuring nano-coating protective layer
  • Dimmable (5-100%) with most ELV, TRIAC dimmers
  • cULus Listed for indoor dry/damp locations
  • 30,000 hours rated life / 5-year limited warranty
SERIES
SPTLX
Input Voltage
24V DC
CCT
2700K / 3000K / 3500K / 4000K
CRI
90+
Lumens
Up to 650Lm per ft
Wattage
7W per ft
Cut Increments
Every 0.33"
Width
10mm
Max Run
13.1ft
IP Rating
IP54 - Damp Location
Ratings
cULus Listed
Rated Life
30,000 Hrs
SPTLX-UWW-13

2700K / 24V / 7W per ft / 550Lm per ft / 13.1 ft Reel

SPTLX-WW-13

3000K / 24V / 7W per ft / 600Lm per ft / 13.1 ft Reel

SPTLX-NW-13

3500K / 24V / 7W per ft / 620Lm per ft / 13.1 ft Reel

SPTLX-WH-13

4000K / 24V / 7W per ft / 650Lm per ft / 13.1 ft Reel

SPTLX-UWW-CC

2700K / 24V / 7W per ft / 550Lm per ft / Custom Cut

SPTLX-WW-CC

3000K / 24V / 7W per ft / 600Lm per ft / Custom Cut

SPTLX-NW-CC

3500K / 24V / 7W per ft / 620Lm per ft / Custom Cut

SPTLX-WH-CC

4000K / 24V / 7W per ft / 650Lm per ft / Custom Cut

TL-CONKIT
Trulink 4-in-1 Connection Kit
TL-BLKS
Trulink 4-in-1 connector Block (qty 10)
TL-2PWR-HD
6" HD Power Feed
TL-2SPL-HD
HD Tape to Tape Splice Connector
TL-2JUMP6-HD
6" HD Linking Cable
TL-2JUMP24-HD
24" HD Linking Cable
WIRE-15-2PIN
15ft (20/2) Wire Spool
LVSB-2PIN
2pin In-line Terminal Block
RCWY-PVC-1M
1m Plastic Wire Cover Raceway
INLINE-SC-CTRL
Simple Select In-line Controller (Single Color)
CATALOG CUT SHEETS

Trulux SPTLX Cut Sheet - Coming Soon

INSTRUCTION MANUALS

ORDERING INFORMATION

PART NUMBERLENGTHVOLTAGECCTCRIWATTAGELUMENSCUTTABLEMAX RUNIP RATING
SPTLX-UWW-1313.1ft24V2700K90+7W/ft550Lm/ft0.32"13.1ftIP54
SPTLX-WW-1313.1ft24V3000K90+7W/ft600Lm/ft0.32"13.1ft
SPTLX-NW-1313.1ft24V3500K90+7W/ft620Lm/ft0.32"13.1ftIP54
SPLTX-WH-1313.1ft24V4000K90+7W/ft650Lm/ft0.32"13.1ftIP54
SPTLX-UWW-CCCustom Cut24V2700K90+7W/ft550Lm/ft0.32"13.1ftIP54
SPTLX-WW-CCCustom Cut24V3000K90+7W/ft600Lm/ft0.32"13.1ftIP54
SPTLX-NW-CCCustom Cut24V3500K90+7W/ft620Lm/ft0.32"13.1ftIP54
SPTLX-WH-CCCustom Cut24V4000K90+7W/ft650Lm/ft0.32"13.1ftIP54
