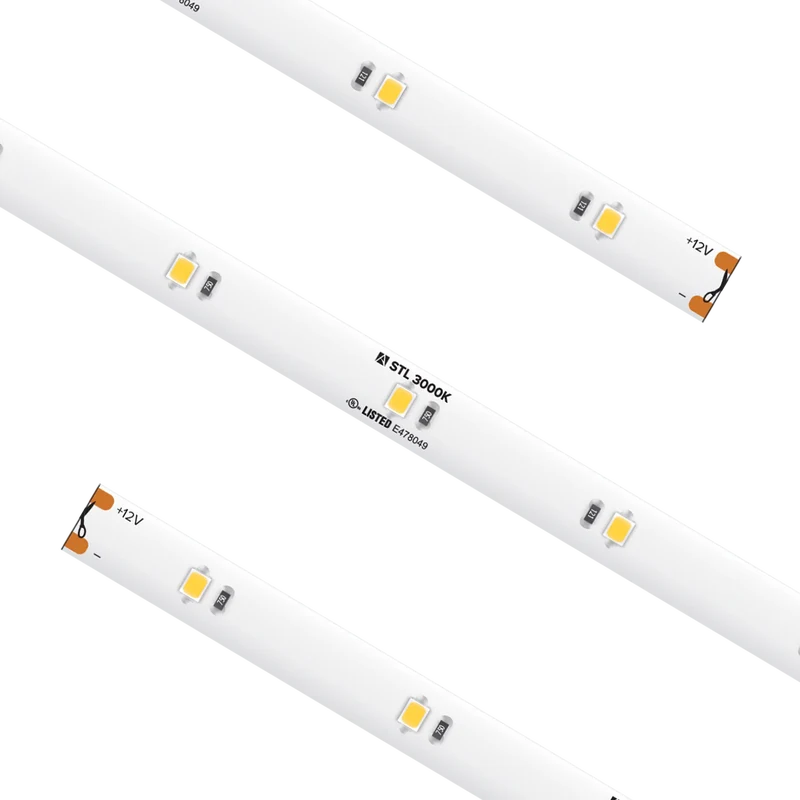

Standard Tape Light IP54 3000K 12V 100Ft

SKU
STL-WW-100-12V

Build an economical and versatile layered lighting system with Standard Grade tape light. Light output of 150 lumens per foot, with easy to work with run lengths up to 27 feet, Standard Grade is perfect for accent lighting applications when soft and subtle lighting is desired.

  • Excellent color rendering (92+ CRI)
  • 100-155 lumens per foot performance
  • Consuming only 2.19 watts per foot
  • Dimmable with most electronic low voltage (ELV) dimmers
  • Run lengths up to 27 feet (12V DC)
  • Available in (IP54) unjacketed and (IP65) jacketed versions
  • Suitable for use in closets when used in an enclosed extrusion based on NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)
  • cULus Listed for indoor dry/damp, and wet locations
  • JA8 Compliant
  • 50,000 hours rated life
Add to Compare
Standard Tape Light IP54 3000K 12V 100Ft
Standard Tape Light IP54 3000K 12V 100Ft

Performance

Input Voltage
12V DC
Wattage
2.19 W/ft
CCT
3000K
CRI
96+
Lumens
150
Cut Increment
3.94 in
Max Run
27 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Style
2Pin Linking
Spacing
1.30 Inch

Physical

Weight
1.80 lbs
Width
0.03 Foot
Length
100 Foot

Certification

Safety Rating
cULus Listed
Title 24
Y
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
Ordering Information
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
STL-WW-100-12V 100 Foot 12V DC 3000K 96+ 2.19 W/ft 150 27 ft IP54 Each
Resources

Catalog Cut Sheets

Specification Sheets

Instruction Manuals

IES Files

Catalogs/Brochures

Ace Configurator

A STEP-BY-STEP GUIDE FOR YOUR NEXT TAPE LIGHT PROJECT IS HERE.

ACE, American Lighting’s product configurator offers a simple step-by-step guide to walk you through your tape light project. Made to be used by beginners and lighting professionals alke ACE assures that you have a complete list of materials for a beautiful linear lighting installation.
